Family
TB-M
RING TERMINAL, FOR COPPER CONDUCTORS, NF C 20-130 add. 1
Gallery
Family
TB-M
RING TERMINAL, FOR COPPER CONDUCTORS, NF C 20-130 add. 1
Description

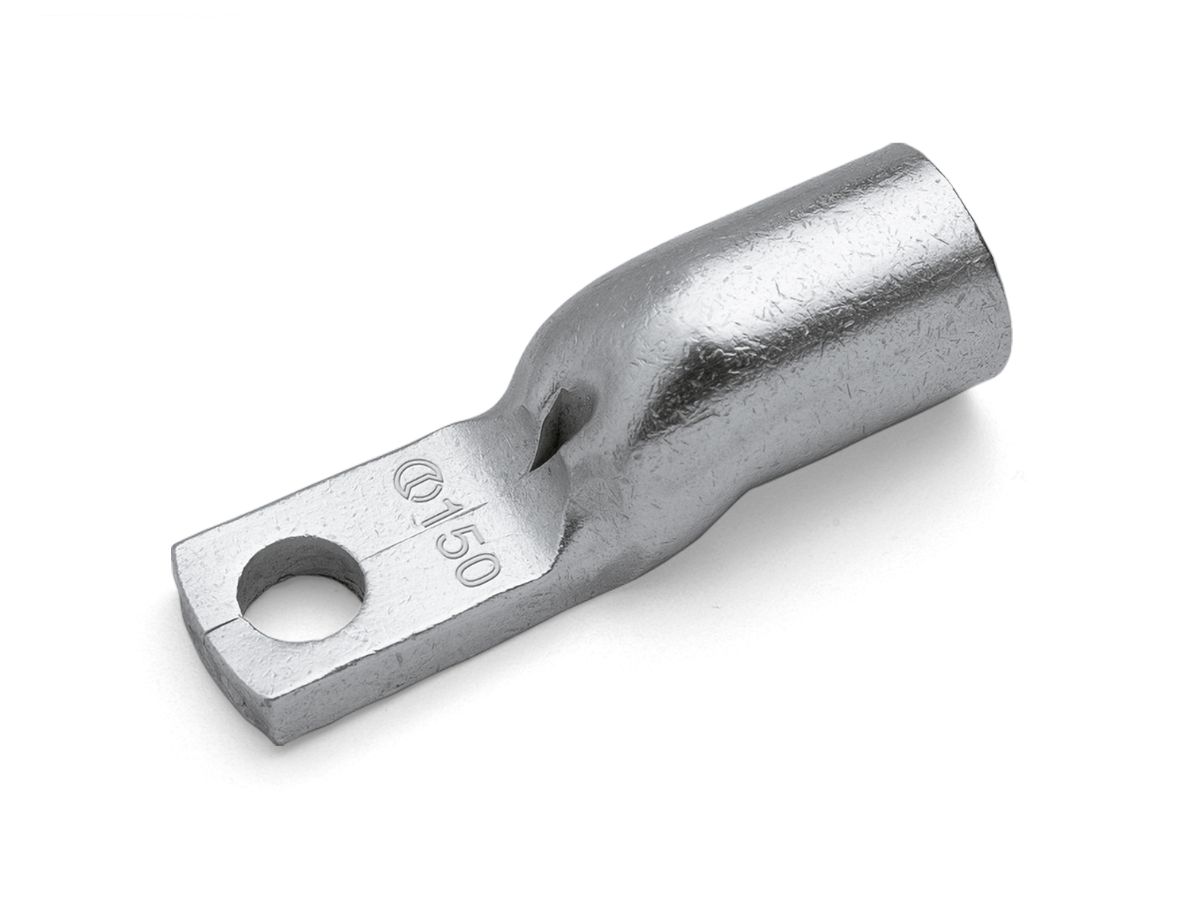

The cable lugs of the T-BM series enable reliable connections on copper conductors.
They are manufactured from high-purity electrolytic copper tube and undergo annealing and electrolytic tin-plating processes to facilitate crimping and increase resistance to mechanical stress.
The barrel features a chamfer to facilitate conductor insertion and an inspection hole to verify correct positioning.
The flared entry facilitates conductor insertion and prevents individual strands from fraying.
The T-BM cable lugs comply with the NF C 20-130 standard.
Read all
Close
They are manufactured from high-purity electrolytic copper tube and undergo annealing and electrolytic tin-plating processes to facilitate crimping and increase resistance to mechanical stress.
The barrel features a chamfer to facilitate conductor insertion and an inspection hole to verify correct positioning.
The flared entry facilitates conductor insertion and prevents individual strands from fraying.
The T-BM cable lugs comply with the NF C 20-130 standard.
Common features in table.
Features
Details by type in expandable section below.
Minimum operating temperature
-50 °C
Maximum operating temperature
150 °C
Spy hole
Yes
Number of holes on the palm
1
Easy insertion input
Yes
Surface treatment
tin plating
Conductor body material
Electrolitic copper with purity above 99.95%
Annealing
Yes
Customs code
85369010
TB-M
| Technical information | Weight and dimensions | Logistic | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

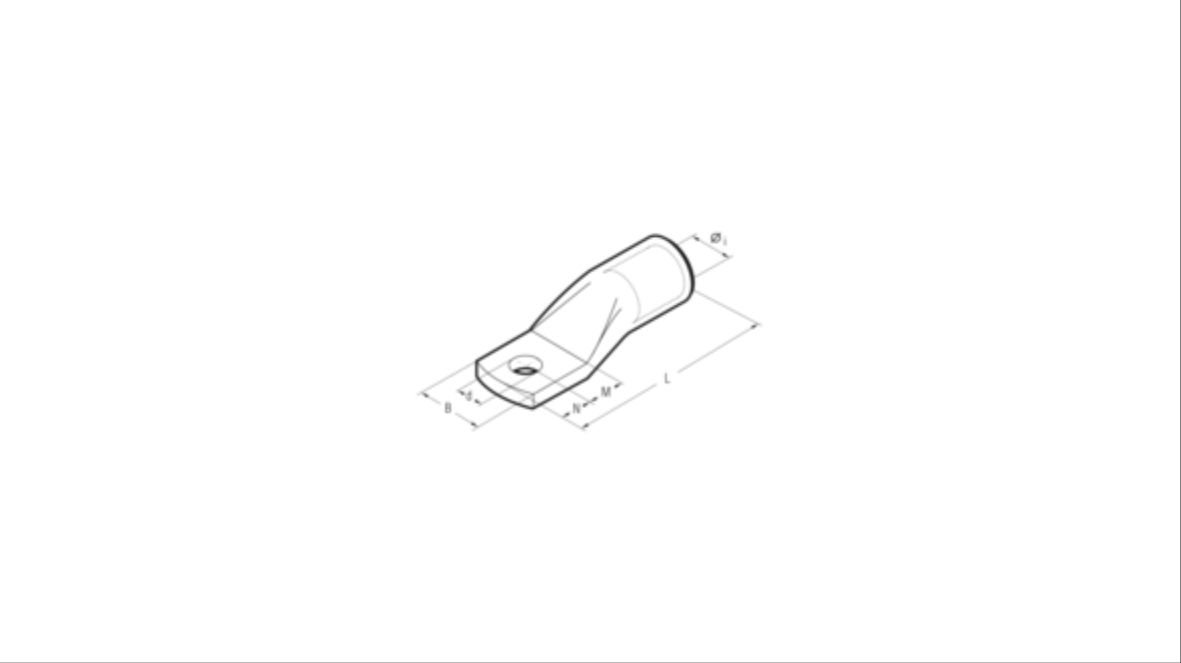

| tipo | Screw pitch | Range of cable cross section (flexible) [mm²] | Range of cable cross section (low stranded) [mm²] | ØD [mm] | B [mm] | N [mm] | M [mm] | I [mm] | L [mm] | A [mm] | Ø [mm] | Cable stripping length [mm] | Ø1 [mm] | Unit in minimal packaging [pce] | Unit in standard packaging [pce] |
| T70B-M6/11.5 | M6 | 70 | 70 | 6.4 | 11.5 | 7 | 8 | 41 | 48 | 21.5 | 11 | 24 | 15 | 50 | 200 |
| T95B-M8/15.5 | M8 | 95 | 95 | 8.4 | 15.5 | 8 | 9 | 48 | 56 | 26 | 13.1 | 29 | 17 | 25 | 100 |
| T120B-M10/19 | M10 | 120 | 120 | 10.5 | 19 | 9 | 14 | 55 | 64 | 29.5 | 14.5 | 33 | 19 | 25 | 75 |
| T150B-M10/19 | M10 | 150 | 150 | 10.5 | 19 | 9 | 18 | 67.5 | 76.5 | 27.5 | 16.2 | 31 | 21 | 10 | 50 |
| T185B-M10/24.5 | M10 | 185 | 185 | 10.5 | 24.5 | 9 | 18 | 73.5 | 82.5 | 36 | 18 | 40 | 23 | 10 | 40 |
| T240-M12/31 | M12 | 240 | 240 | 13.2 | 31 | 12 | 18 | 81 | 93 | 39 | 20.6 | 43 | 26 | 10 | 30 |
| T300B-M12/31 | M12 | 240 | 240 | 13.2 | 31 | 12 | 18 | 81 | 93 | 46 | 20.6 | 51 | 26 | 5 | 20 |
T70B-M6/11.5
Screw pitch
M6
Range of cable cross section (flexible) [mm²]
70
Range of cable cross section (low stranded) [mm²]
70
ØD [mm]
6.4
B [mm]
11.5
N [mm]
7
M [mm]
8
I [mm]
41
L [mm]
48
A [mm]
21.5
Ø [mm]
11
Cable stripping length [mm]
24
Ø1 [mm]
15
Unit in minimal packaging [pce]
50
Unit in standard packaging [pce]
200
T95B-M8/15.5
Screw pitch
M8
Range of cable cross section (flexible) [mm²]
95
Range of cable cross section (low stranded) [mm²]
95
ØD [mm]
8.4
B [mm]
15.5
N [mm]
8
M [mm]
9
I [mm]
48
L [mm]
56
A [mm]
26
Ø [mm]
13.1
Cable stripping length [mm]
29
Ø1 [mm]
17
Unit in minimal packaging [pce]
25
Unit in standard packaging [pce]
100
T120B-M10/19
Screw pitch
M10
Range of cable cross section (flexible) [mm²]
120
Range of cable cross section (low stranded) [mm²]
120
ØD [mm]
10.5
B [mm]
19
N [mm]
9
M [mm]
14
I [mm]
55
L [mm]
64
A [mm]
29.5
Ø [mm]
14.5
Cable stripping length [mm]
33
Ø1 [mm]
19
Unit in minimal packaging [pce]
25
Unit in standard packaging [pce]
75
T150B-M10/19
Screw pitch
M10
Range of cable cross section (flexible) [mm²]
150
Range of cable cross section (low stranded) [mm²]
150
ØD [mm]
10.5
B [mm]
19
N [mm]
9
M [mm]
18
I [mm]
67.5
L [mm]
76.5
A [mm]
27.5
Ø [mm]
16.2
Cable stripping length [mm]
31
Ø1 [mm]
21
Unit in minimal packaging [pce]
10
Unit in standard packaging [pce]
50
T185B-M10/24.5
Screw pitch
M10
Range of cable cross section (flexible) [mm²]
185
Range of cable cross section (low stranded) [mm²]
185
ØD [mm]
10.5
B [mm]
24.5
N [mm]
9
M [mm]
18
I [mm]
73.5
L [mm]
82.5
A [mm]
36
Ø [mm]
18
Cable stripping length [mm]
40
Ø1 [mm]
23
Unit in minimal packaging [pce]
10
Unit in standard packaging [pce]
40
T240-M12/31
Screw pitch
M12
Range of cable cross section (flexible) [mm²]
240
Range of cable cross section (low stranded) [mm²]
240
ØD [mm]
13.2
B [mm]
31
N [mm]
12
M [mm]
18
I [mm]
81
L [mm]
93
A [mm]
39
Ø [mm]
20.6
Cable stripping length [mm]
43
Ø1 [mm]
26
Unit in minimal packaging [pce]
10
Unit in standard packaging [pce]
30
T300B-M12/31
Screw pitch
M12
Range of cable cross section (flexible) [mm²]
240
Range of cable cross section (low stranded) [mm²]
240
ØD [mm]
13.2
B [mm]
31
N [mm]
12
M [mm]
18
I [mm]
81
L [mm]
93
A [mm]
46
Ø [mm]
20.6
Cable stripping length [mm]
51
Ø1 [mm]
26
Unit in minimal packaging [pce]
5
Unit in standard packaging [pce]
20
Follow us
Subscribe to CEMBRE newsletter and stay tuned
Thank you, your request has been send successfully
You'll be contact soon by our commercial staff
Print label service
Fill in the form and follow the instructions to request the label print service
Thank you, your request has been send successfully
You'll be contact soon by our commercial staff
