9200.10

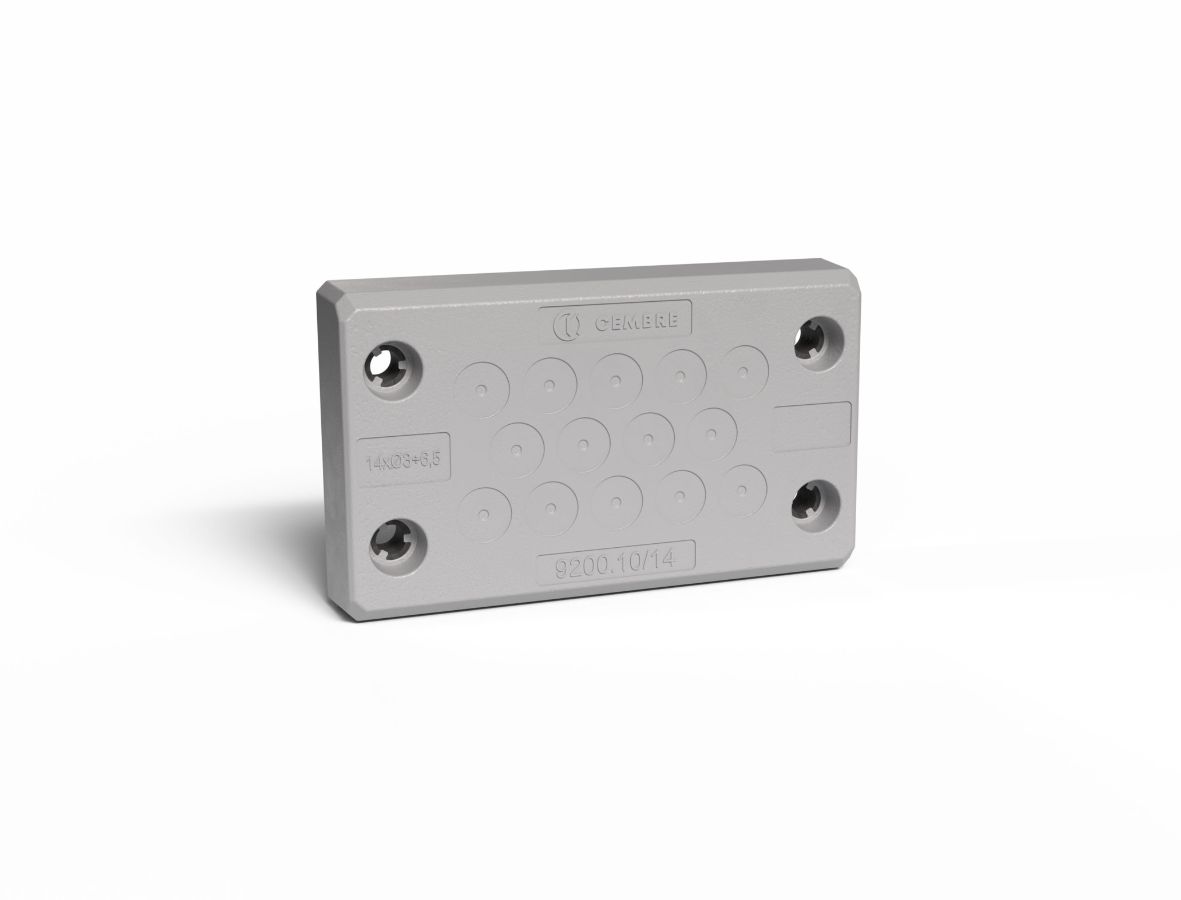

MULTI-MEMBRANE RECTANGULAR CABLE ENTRY PLATES, RIGID FRAME

Gallery

9200.10

MULTI-MEMBRANE RECTANGULAR CABLE ENTRY PLATES, RIGID FRAME

Documentation

Instructions (pdf)

Certifications & approvals

CE
UL (cURus)

Description

Rectangular bi-component membrane cable entry plates for the safe routing of unterminated cables entering and exiting electrical switchboards, control panels and machinery.

Compatible with standard 10-pole industrial connector openings.
IP65 protection rating.
“Preload Technology”: slightly curved frame to ensure a uniform seal during installation.
Three methods of fixing to the enclosure: through-hole with lock nut, threaded bushing on the enclosure, or threaded bushing on the membrane for fixing from the inside.
Double sealing membrane: easier cable insertion and greater tear resistance.
Centring system: easy and controlled insertion of the cable through the membrane.
Material: TPE elastomer (external membrane) and glass-fibre-reinforced polypropylene (internal frame).
Compliance with standard EN 45545-2: high safety standards for railway applications and rolling stock.

Read all Close

Common features in table.

Features

Details by type in expandable section below.

Technical information
Material composition and treatments
Weight and dimensions
Logistic
Classification and data ordering
Certifications

Range of operating temperature (static)

-40 ÷ 100 °C

Colour

grey

Screw pitch

Presence of overmolded gasket

Yes

Material

Polypropylene + Glass fiber

Silicone-free

Yes

Halogen free

Yes

Clamping element material

Stainless steel Class A2

Overmolded gasket material

TPE elastomer

Fixing hole diameter

5.5 mm

Height

61 mm

Length

103 mm

Net weight in operation

80 g

Vertical distance between fixing holes

32 mm

Horizontal distance between fixing holes

83 mm

Depth

16 mm

Drilling shape height

36 ÷ 46 mm

Drilling shape length

65 mm

Unit in minimal packaging

10 PCE

Unit in standard packaging

10 PCE

Customs code

39269097

EN 45545-2 certification(R22)

HL2

EN 45545-2 certification(R23)

HL3

Self-extinguishing fire class according to UL 94

UL standard

50E

UL type

1; 12

NEMA type

1; 12

Compliance according to CEI EN 62444

Yes

Ingress Protection

IP65

9200.10

	Technical information		Weight and dimensions
tipo	Number of cables that can be inserted	Number of cables per cable diameter range	Ø [mm]
9200.10/8	8	8 [7.5-12]	7.5 - 12
9200.10/14	14	14 [4.8-10.2 ]	4.8 - 10.2
9200.10/15	15	5 [3-6.5]; 10 [4.8-10.2]	3 - 10.2
9200.10/16	16	9 [3-6.5]; 4 [4.8-10.2]; 3 [7.5-12]	3 - 12
9200.10/26	26	26 [3-6.5]	3 - 6.5
