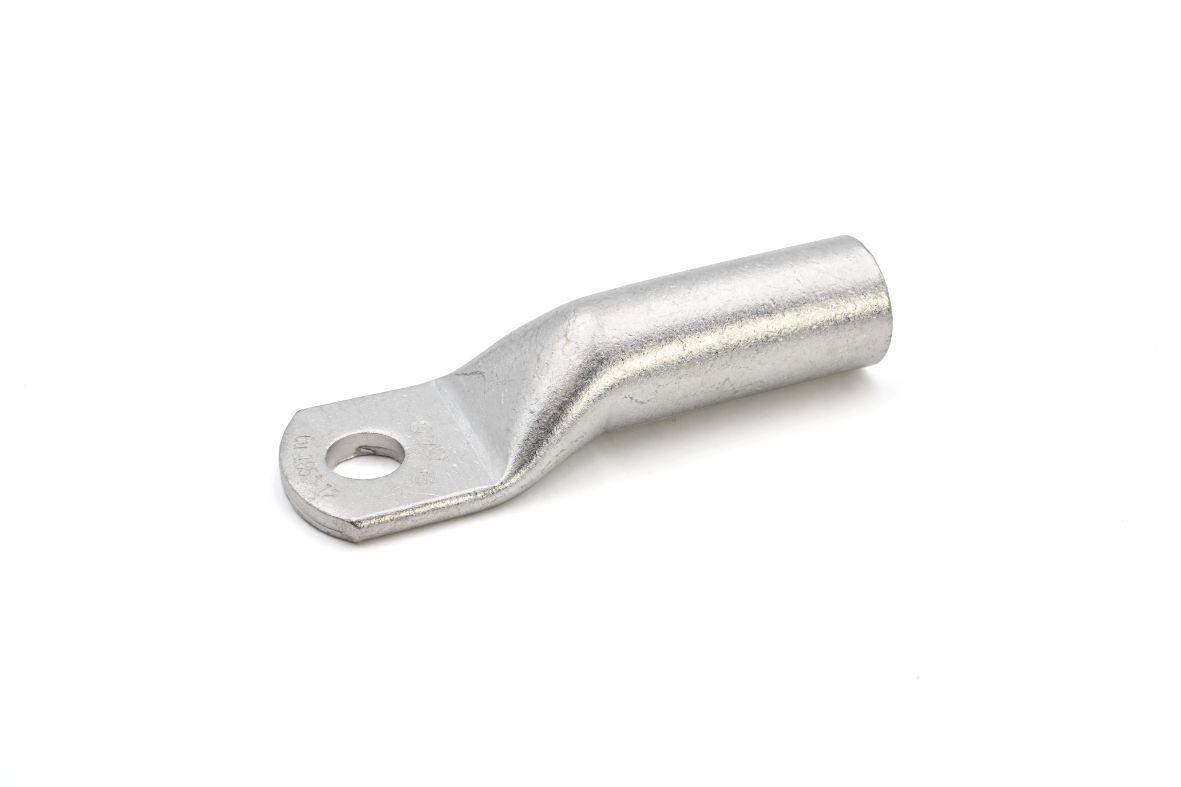

2A37-M10 HEAVY DUTY RING TERMINAL

Name: HEAVY DUTY RING TERMINAL
SKU: 2A37-M10

HEAVY DUTY RING TERMINAL, FOR COPPER CONDUCTORS, SCREW 10MM SECTION 185MMQ

Gallery

2A37-M10

HEAVY DUTY RING TERMINAL

HEAVY DUTY RING TERMINAL, FOR COPPER CONDUCTORS, SCREW 10MM SECTION 185MMQ

Documentation

Instructions (pdf)

Certifications & approvals

UL (cULus)

Features

Technical information
Material composition and treatments
Weight and dimensions
Logistic
Classification and data ordering
Certifications

Minimum operating temperature

-50 °C

Maximum operating temperature

150 °C

Number of holes on the palm

Easy insertion input

Yes

Surface treatment

tin plating

Maximum operating voltage

35000 V

Crimping geometry

indent; hexagonal

Range of cable cross section(LOW STRANDED)

185 mm²

Range of cable cross section(FLEXIBLE)

150 ÷ 185 mm²

Conductor body material

Rame elettrolitico con purezza superiore al 99,95%

Annealing

Yes

Screw diameter

M10

Eyelet diameter

10.5 mm

Palm width

35.5 mm

Centre distance between the palm hole and the outer edge of the eyelet

11 mm

Centre distance between the palm hole and the transition point

13 mm

Centre distance between the palm hole and the outer edge of the barrel

91 mm

Tightening torque(HIGH CONDUCTIVITY SCREW)

20 Nm

Tightening torque(8.8 GRADE SCREW)

35 Nm

Total length

102 mm

Barrel length

55 mm

Inner diameter of the barrel

19.2 mm

Cable stripping length

61 mm

Outer diameter of barrel

24.4 mm

Unit in minimal packaging

15 PCE

Unit in standard packaging

30 PCE

Customs code

85369010

ROHS compliant

Yes
