MBS-C

FUSABLE SCREW MECHANICAL JOINTS, FOR LOW AND MEDIUM VOLTAGE, FOR AL/CU CONDUCTORS

Gallery

MBS-C

FUSABLE SCREW MECHANICAL JOINTS, FOR LOW AND MEDIUM VOLTAGE, FOR AL/CU CONDUCTORS

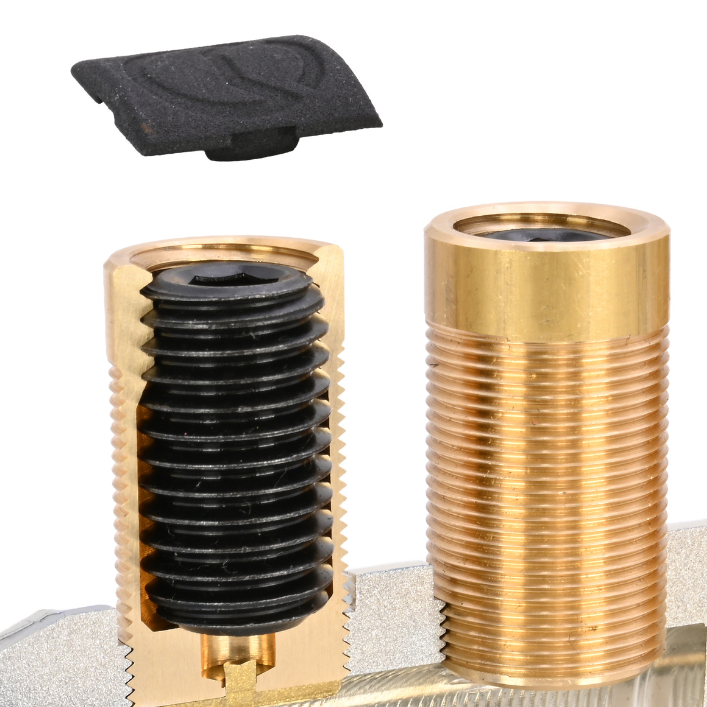

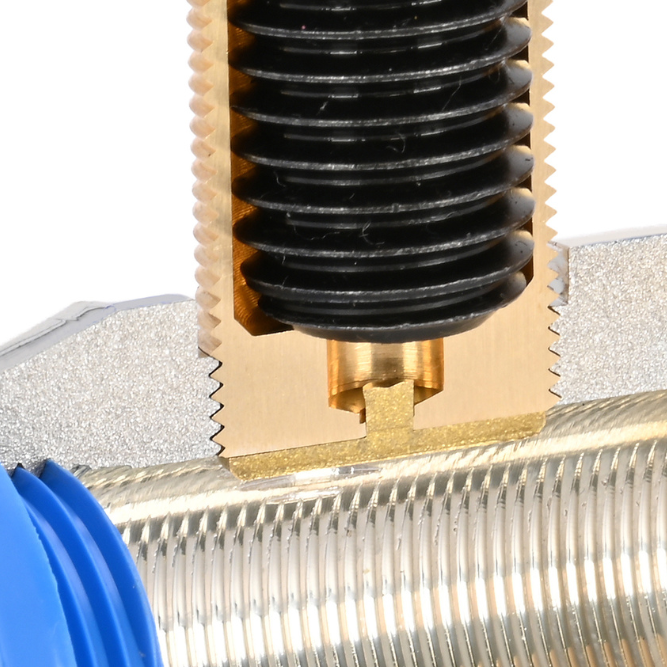

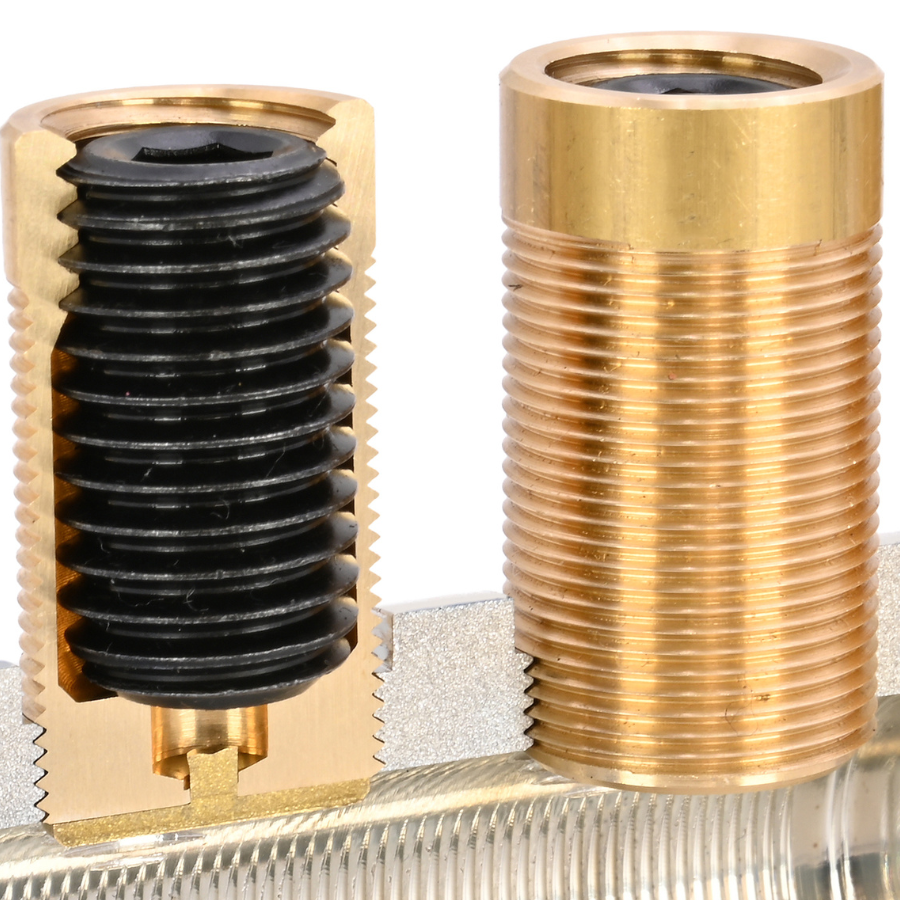

Features

Technical information
Material composition and treatments
Weight and dimensions
Logistic
Classification and data ordering

Minimum operating temperature

-50 °C

Maximum operating temperature

150 °C

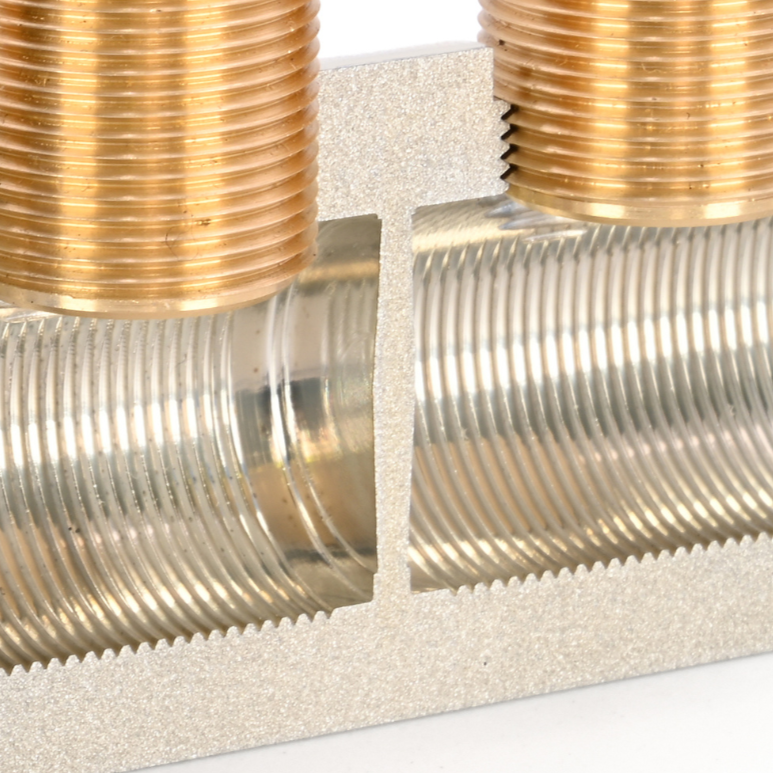

Central stop

Yes

Maximum operating voltage

52000 V

Grease inside the barrel

Yes

Number of clamping elements

Torque of the clamping element

35 Nm

Conductor body material

Alluminio con purezza superiore al 99,5%

Minimum thickness of the surface coating of the conducting body

12 µm

Surface treatment of the conductor body

tin plating

Clamping element material

Aluminium

Centering device material

Polyamide PA6

Spanner size

22 mm

Range of cable cross section

50 ÷ 240 mm²

Total length

124 mm

Inner diameter of the barrel

20.5 mm

Cable stripping length

72 mm

Outer diameter of barrel

35 mm

Type of packaging

; box

Unit in minimal packaging

1 PCE

Unit in standard packaging

1 PCE

Electrocode

3684

ETIM Class 7

Connector to screw [EC001063]

Customs code

85369010

MBS-C

	Technical information						Material composition and treatments	Weight and dimensions			Certifications
tipo	Type of connector	Geometry of the clamping element	Type of grease inside the barrel	Centering devices	Number of centering devices	Centering device color	Internal surface of the barrel	Greatest internal diameter of the barrel [mm]	Smallest internal diameter of the barrel [mm]	Gross weight [g]	ROHS compliant
MBS50-240C	butt connector	hex socket wrench						20.5	20.5	325,700	Yes
MBS50-240NC	parallel through connector	hexagonal wrench	conductive	Yes	3	red; blue; yellow	knurled
