Categories > Cable lugs > Non-insulated > Cable terminals and connectors with fuse screw connection >

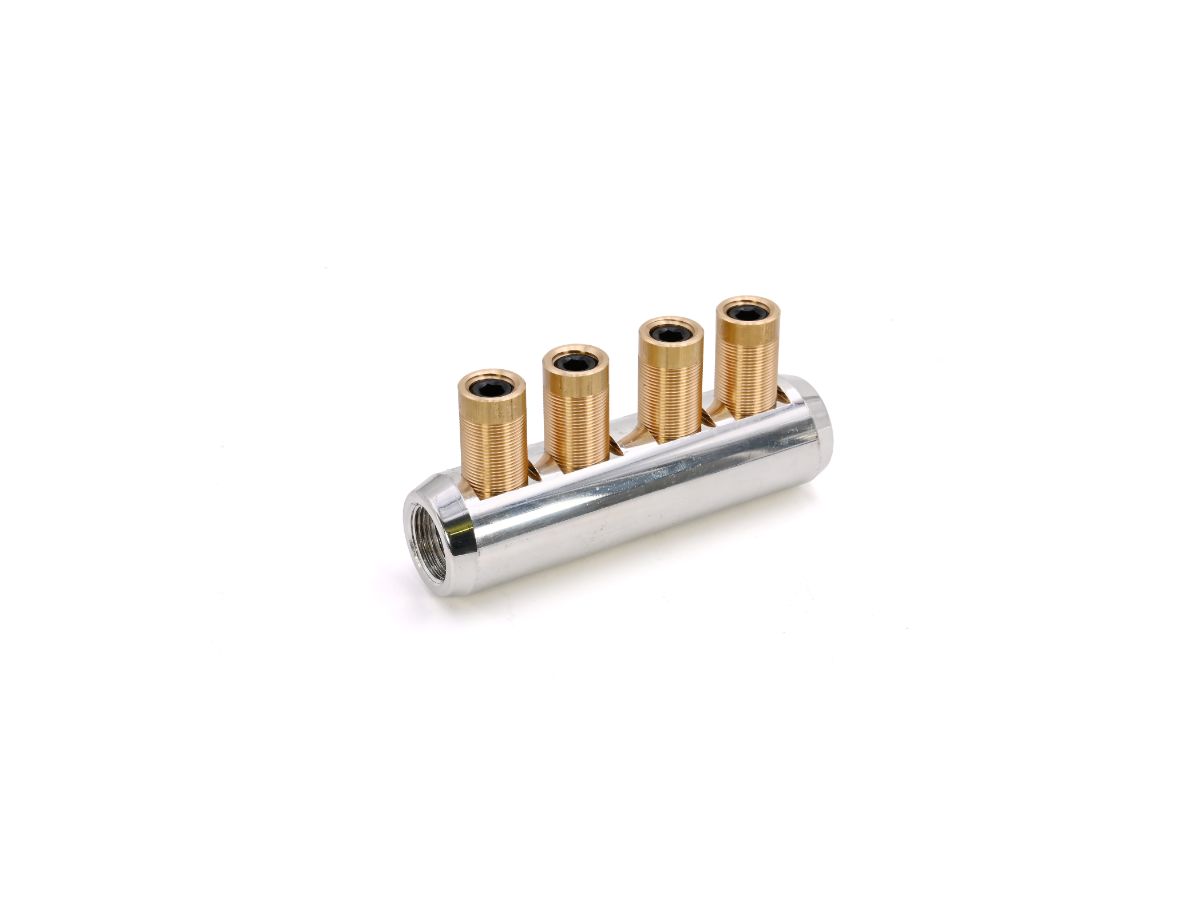

MBS-E

Mechanical fuse screw joints

Gallery

MBS-E

Mechanical fuse screw joints

Common features in table.

Features

Details by type in expandable section below.

Technical information
Material composition and treatments
Weight and dimensions
Logistic
Classification and data ordering

Minimum operating temperature

-50 °C

Maximum operating temperature

150 °C

Type of connector

parallel through connector

Central stop

Yes

Geometry of the clamping element

Hexagonal wrench

Surface treatment

tin plating

Grease inside the barrel

Yes

Number of clamping elements

Torque of the clamping element

40 Nm

Range of cable cross section

50 ÷ 240 mm²

Conductor body material

Alluminio con purezza superiore al 99,5%

Clamping element material

Aluminium

Centering device material

Polyamide PA6

Spanner size

22 mm

Total length

124 mm

Inner diameter of the barrel

20.5 mm

Cable stripping length

68 mm

Outer diameter of barrel

35 mm

Unit in minimal packaging

1 PCE

Unit in standard packaging

20 PCE

Customs code

85369010
