Categories > Cable glands > Cable entry systems > Split cable entry systems for predetermined cables and accessories >

9010-SO CLOSING PLATES

CLOSING PLATES, MADE OF GLASS-FIBRE REINFORCED POLYPROPYLENE
Gallery

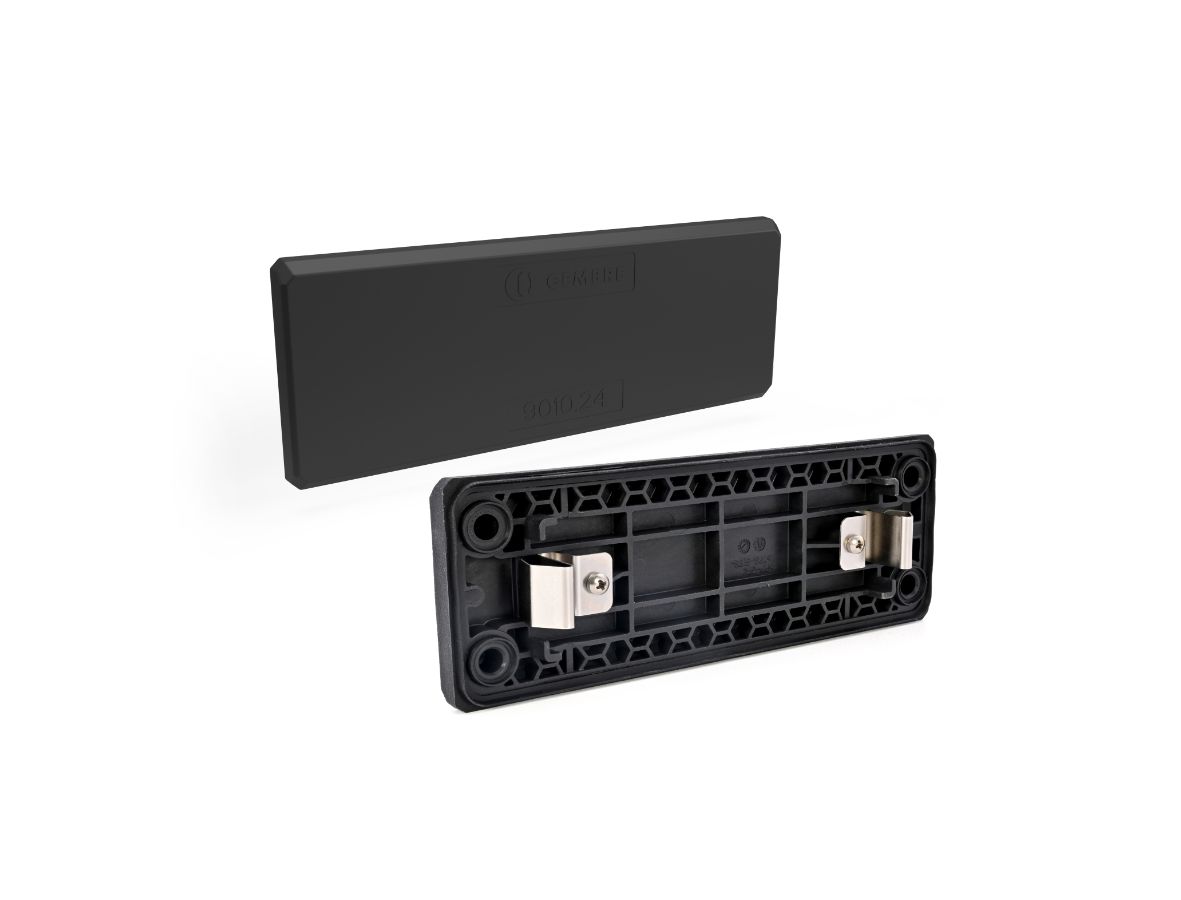

9010-SO closing plates
9010-SO closing plates

9010-SO

CLOSING PLATES, MADE OF GLASS-FIBRE REINFORCED POLYPROPYLENE

Features
  • Technical information
  • Material composition and treatments
  • Weight and dimensions
  • Logistic
  • Classification and data ordering
  • Certifications
Range of operating temperature (static)
-40 ÷ 140   °C
Color
Black
Presence of overmolded gasket
Yes
Range of sheet thickness
1.5 ÷ 4   mm
Hook material
Stainless steel
Material
Polypropylene + Glass fiber
Silicone-free
Yes
Halogen free
Yes
Overmolded gasket material
TPE elastomer
Fixing hole diameter
5.5   mm
Thickness
20   mm
Height
55.5
Vertical center distance between the fixing holes
32
Unit in minimal packaging
10   PCE
Unit in standard packaging
10   PCE
Customs code
39269097
Self-extinguishing fire class according to UL 94
V0
Ingress Protection
IP54
EN ISO 4892-2
Yes

9010-SO
Weight and dimensions
tipo
tipo
 L
L
 Net weight in operation [kg]
Net weight in operation [kg]
 Horizontal center distance between the fixing holes
Horizontal center distance between the fixing holes
 Drilling shape height [mm]
Drilling shape height [mm]
 Drilling shape length [mm]
Drilling shape length [mm]
9010.24-SO 148.5 48 130 36 ÷ 46 112
9010.Q-SO 76.5 30 58 43 43
9010.16-SO 121.5 42 103 36 ÷ 46 112
9010.10-SO 101.5 37 83 36 ÷ 46 65
