A-2M Contained palm

Gallery

A-2M Contained palm

Documentation

Instructions (pdf)

Certifications & approvals

UL (cULus)

Description

The cable lugs with narrow palm of the A-2M series enable reliable connections on copper conductors.
They are manufactured from high-purity electrolytic copper tube and undergo annealing and electrolytic tin-plating processes to facilitate crimping and increase resistance to mechanical stress.
The narrow palm with two fixing holes facilitates installation in applications with limited mounting space while ensuring high fastening stability even under severe electrodynamic stresses.
The barrel features a chamfer to facilitate conductor insertion and an inspection hole to verify correct conductor positioning.
The A-2M cable lugs are cULus certified.

Read all Close

Common features in table.

Features

Details by type in expandable section below.

Technical information
Material composition and treatments
Classification and data ordering

Minimum operating temperature

-58 °F

Maximum operating temperature

302 °F

Spy hole

Yes

Number of holes on the palm

Easy insertion input

Yes

Surface treatment

tin plating

Conductor body material

Electrolitic copper with purity above 99.95%

Annealing

Yes

Customs code

85369010

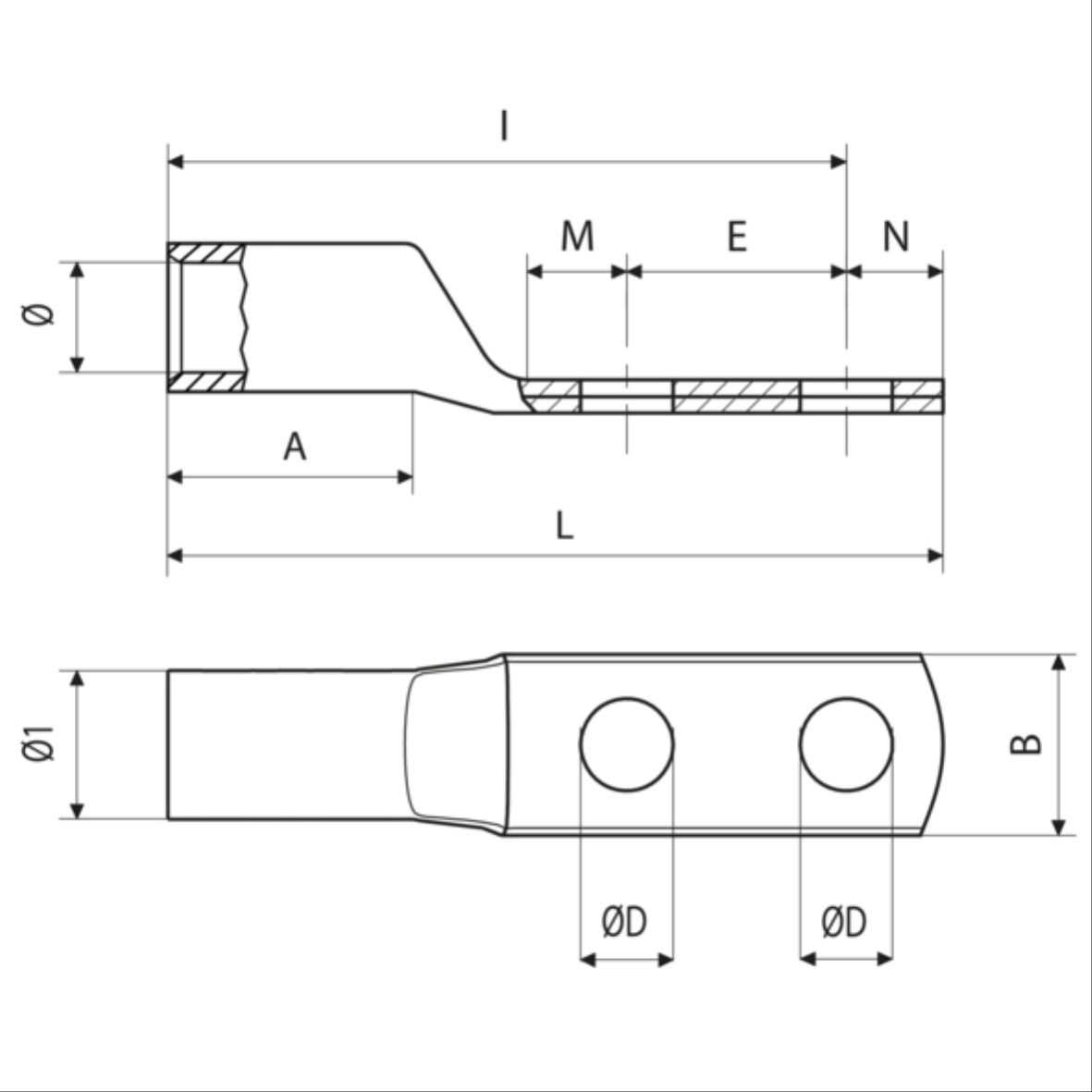

A-2M Contained palm

	Technical information			Weight and dimensions												Logistic		Certifications
tipo	Range of cable cross section (flexible) [awg/kcmil]	Range of cable cross section (low stranded) [awg/kcmil]	Range of cable cross section [awg/kcmil]	Screw diameter	ØD [in]	B [in]	N [in]	M [in]	I [in]	E [in]	L [in]	A [in]	Ø [in]	Cable stripping length [in]	Ø1 [in]	Unit in minimal packaging [pce]	Unit in standard packaging [pce]	ROHS compliant	UL standard
A17-2M10-25/19			2/0 AWG	M10	0.41	0.75	0.39	0.43	2.6	0.98	2.99	0.79	0.51	0.87	0.63	25	100	Yes
A24B-2M8-25/19	3/0 AWG - 4/0 AWG	4/0 AWG		M8	0.33	0.75	0.35	0.55	2.01	0.98	3.35	1	0.6	1.14	0.77			Yes	486A-486B
A24B-2M8-45/19	3/0 AWG - 4/0 AWG	4/0 AWG		M8	0.33	0.75	0.35	0.55	2.01	1.77	4.13	1	0.6	1.14	0.77			Yes	486A-486B
A37-2M12/31	300 kcmil - 350 kcmil	300 kcmil		M12	0.52	1.22	0.47	0.63	2.68	1.75	4.9	1.14	0.76	1.26	0.96	15	30	Yes
A48-2M12/31	350 kcmil - 500 kcmil	500 kcmil		M12	0.52	1.22	0.55	0.63	4.67	1.75	5.22	1.3	0.83	1.46	1.07	15	30	Yes
A60-2M12/36	500 kcmil - 600 kcmil	600 kcmil		M12	0.52	1.42	0.55	0.79	5.1	1.75	5.65	1.57	0.93	1.73	1.2	5	20	Yes

A17-2M10-25/19

Range of cable cross section (flexible) [awg/kcmil] –

Range of cable cross section (low stranded) [awg/kcmil] –

Range of cable cross section [awg/kcmil] 2/0 AWG

Screw diameter M10

ØD [in] 0.41

B [in] 0.75

N [in] 0.39

M [in] 0.43

I [in] 2.6

E [in] 0.98

L [in] 2.99

A [in] 0.79

Ø [in] 0.51

Cable stripping length [in] 0.87

Ø1 [in] 0.63

Unit in minimal packaging [pce] 25

Unit in standard packaging [pce] 100

ROHS compliant Yes

UL standard –

A24B-2M8-25/19

Range of cable cross section (flexible) [awg/kcmil] 3/0 AWG - 4/0 AWG

Range of cable cross section (low stranded) [awg/kcmil] 4/0 AWG

Range of cable cross section [awg/kcmil] –

Screw diameter M8

ØD [in] 0.33

B [in] 0.75

N [in] 0.35

M [in] 0.55

I [in] 2.01

E [in] 0.98

L [in] 3.35

A [in] 1

Ø [in] 0.6

Cable stripping length [in] 1.14

Ø1 [in] 0.77

Unit in minimal packaging [pce] –

Unit in standard packaging [pce] –

ROHS compliant Yes

UL standard 486A-486B

A24B-2M8-45/19

Range of cable cross section (flexible) [awg/kcmil] 3/0 AWG - 4/0 AWG

Range of cable cross section (low stranded) [awg/kcmil] 4/0 AWG

Range of cable cross section [awg/kcmil] –

Screw diameter M8

ØD [in] 0.33

B [in] 0.75

N [in] 0.35

M [in] 0.55

I [in] 2.01

E [in] 1.77

L [in] 4.13

A [in] 1

Ø [in] 0.6

Cable stripping length [in] 1.14

Ø1 [in] 0.77

Unit in minimal packaging [pce] –

Unit in standard packaging [pce] –

ROHS compliant Yes

UL standard 486A-486B

A37-2M12/31

Range of cable cross section (flexible) [awg/kcmil] 300 kcmil - 350 kcmil

Range of cable cross section (low stranded) [awg/kcmil] 300 kcmil

Range of cable cross section [awg/kcmil] –

Screw diameter M12

ØD [in] 0.52

B [in] 1.22

N [in] 0.47

M [in] 0.63

I [in] 2.68

E [in] 1.75

L [in] 4.9

A [in] 1.14

Ø [in] 0.76

Cable stripping length [in] 1.26

Ø1 [in] 0.96

Unit in minimal packaging [pce] 15

Unit in standard packaging [pce] 30

ROHS compliant Yes

UL standard –

A48-2M12/31

Range of cable cross section (flexible) [awg/kcmil] 350 kcmil - 500 kcmil

Range of cable cross section (low stranded) [awg/kcmil] 500 kcmil

Range of cable cross section [awg/kcmil] –

Screw diameter M12

ØD [in] 0.52

B [in] 1.22

N [in] 0.55

M [in] 0.63

I [in] 4.67

E [in] 1.75

L [in] 5.22

A [in] 1.3

Ø [in] 0.83

Cable stripping length [in] 1.46

Ø1 [in] 1.07

Unit in minimal packaging [pce] 15

Unit in standard packaging [pce] 30

ROHS compliant Yes

UL standard –

A60-2M12/36

Range of cable cross section (flexible) [awg/kcmil] 500 kcmil - 600 kcmil

Range of cable cross section (low stranded) [awg/kcmil] 600 kcmil

Range of cable cross section [awg/kcmil] –

Screw diameter M12

ØD [in] 0.52

B [in] 1.42

N [in] 0.55

M [in] 0.79

I [in] 5.1

E [in] 1.75

L [in] 5.65

A [in] 1.57

Ø [in] 0.93

Cable stripping length [in] 1.73

Ø1 [in] 1.2

Unit in minimal packaging [pce] 5

Unit in standard packaging [pce] 20

ROHS compliant Yes

UL standard –
