Categories > Cable lugs > Non-insulated > For aluminium cables > CAA630-4M8

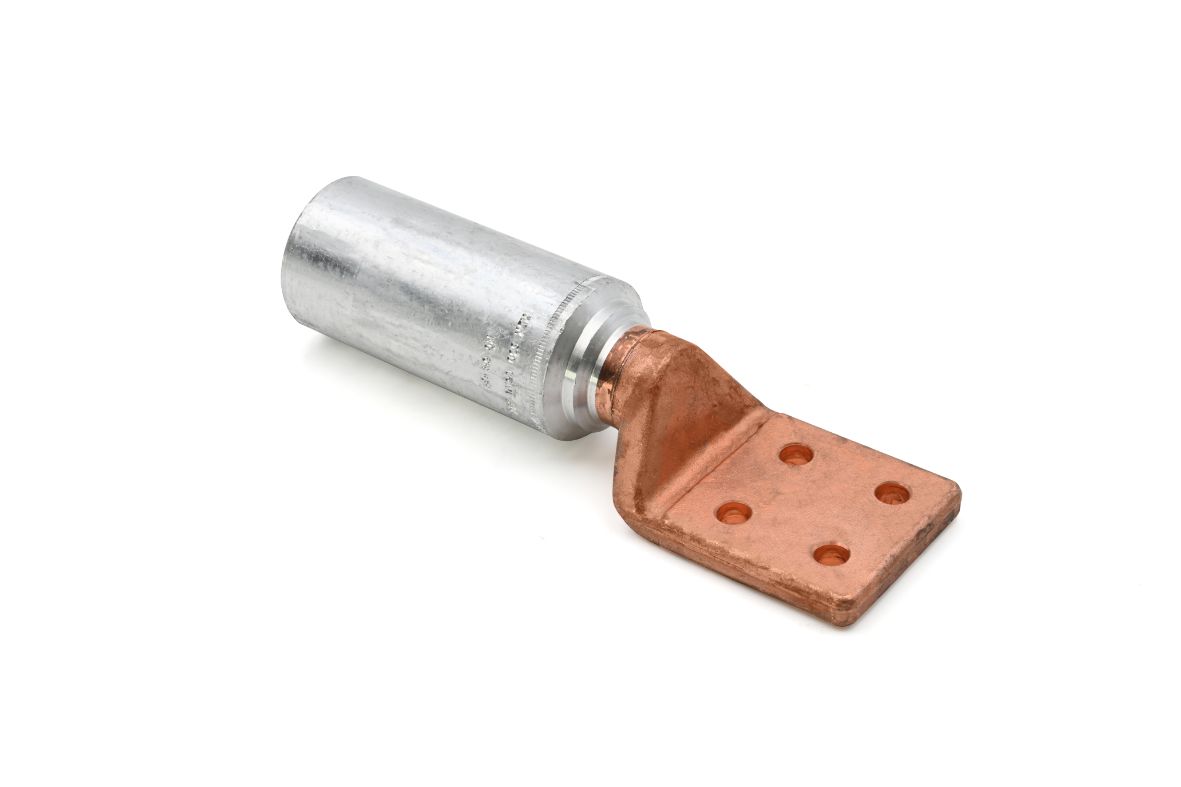

CAA630-4M8

Name: CAA630-4M8
SKU: CAA630-4M8

Gallery

CAA630-4M8

Features

Technical information
Material composition and treatments
Weight and dimensions
Logistic
Classification and data ordering
Certifications

Minimum operating temperature

-50 °C

Maximum operating temperature

150 °C

Number of holes on the palm

Easy insertion input

Yes

Maximum operating voltage

30000 V

Filler putty

Yes

Crimping geometry

deep indent

Range of cable cross section

630 mm²

Conductor body material

Bimetallico (Rame elettrolitico con purezza superiore al 99,95% e Alluminio con purezza superiore al 99,5%)

Barrel material

Alluminio con purezza superiore al 99,5%

Palm material

Rame elettrolitico con purezza superiore al 99,95%

Screw diameter

Eyelet diameter

9 mm

Palm width

60 mm

Center distance between holes

30 mm

Tightening torque(8.8 GRADE SCREW)

20 Nm

Tightening torque(HIGH CONDUCTIVITY SCREW)

10 Nm

Total length

200 mm

Barrel length

95.7 mm

Inner diameter of the barrel

32.5 mm

Cable stripping length

106 mm

Outer diameter of barrel

47 mm

Unit in minimal packaging

3 PCE

Unit in standard packaging

9 PCE

Customs code

85369010

ROHS compliant

Yes
