A-M Fine stranded RING TERMINAL

RING TERMINAL, FOR ULTRA FLEXIBLE COPPER CONDUCTORS CLASS 5 AND 6

Gallery

A-M Fine stranded

RING TERMINAL, FOR ULTRA FLEXIBLE COPPER CONDUCTORS CLASS 5 AND 6

Documentation

Instructions (pdf)

Certifications & approvals

UL (cULus)

Description

A-M series non-insulated terminals are made with electrolytic copper pipe of more than 99.9% purity. They are the ideal choice for connecting highly flexible, class 5 and 6, CEI 20-29 copper cables. Due to the annealing and electrolytic tinning process, the connectors are easier to compress and more resistant to mechanical stress. The collar is provided with a chamfer and inspection hole to facilitate insertion of the conductor into the terminal and to avoid stretching of the elementary wires. The length of the collar is such as to facilitate the introduction of the lug into the tool dies, thus simplifying wiring operations.

Read all Close

Common features in table.

Features

Details by type in expandable section below.

Technical information
Material composition and treatments
Classification and data ordering

Minimum operating temperature

-50 °C

Maximum operating temperature

150 °C

Spy hole

Yes

Number of holes on the palm

Easy insertion input

Yes

Surface treatment

tin plating

Compatible cable class

5 and 6 class, CEI 20-29

Conductor body material

Rame elettrolitico con purezza superiore al 99,95%

Annealing

Yes

Customs code

85369010

A9-M

Range of cable cross section (extra flexible) [mm²] 35

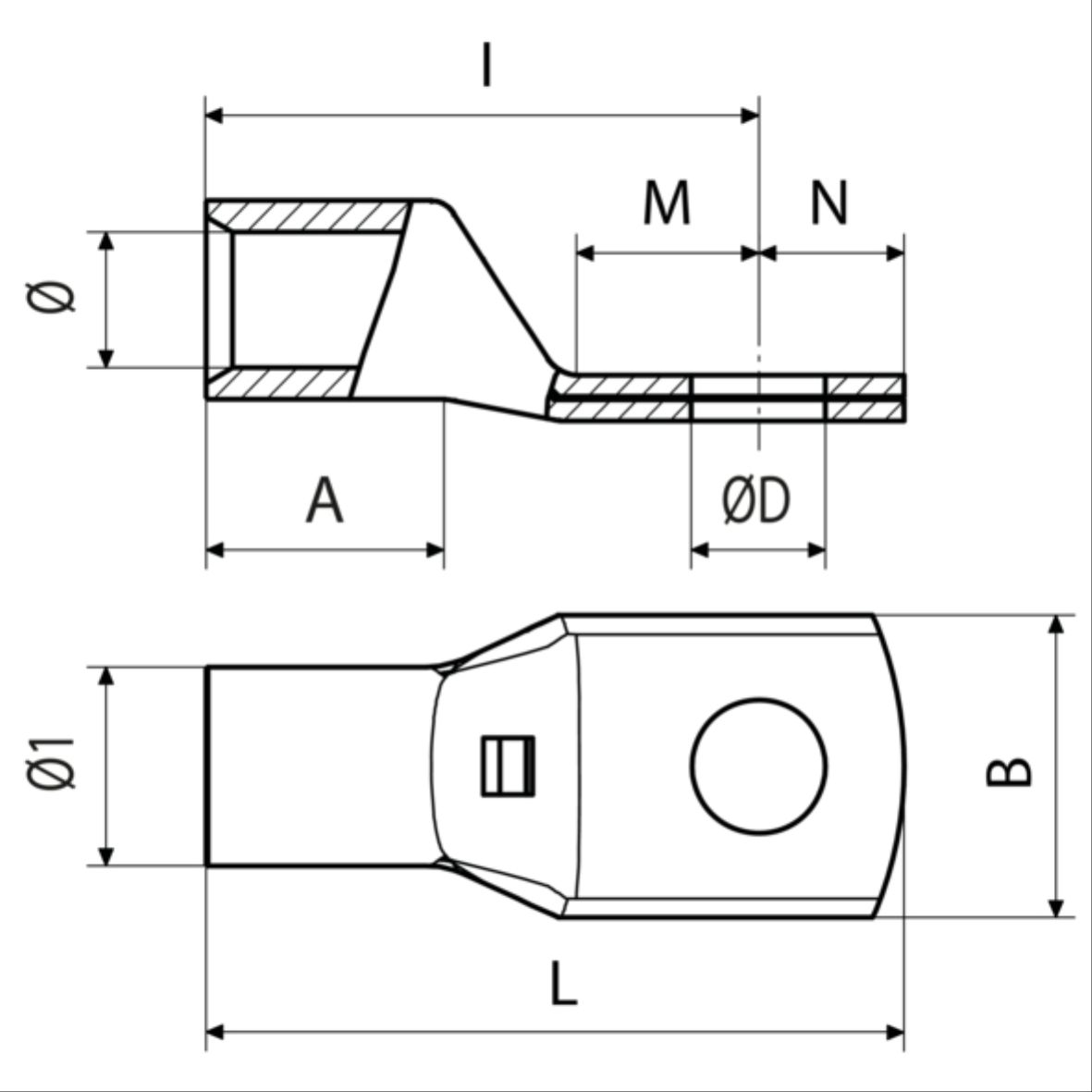

	Technical information	Weight and dimensions													Logistic		Certifications
tipo	Crimping geometry	Screw diameter	ØD [mm]	B [mm]	N [mm]	M [mm]	I [mm]	Tightening torque (high conductivity screw) [nm]	Tightening torque (8.8 grade screw) [nm]	L [mm]	A [mm]	Ø [mm]	Cable stripping length [mm]	Ø1 [mm]	Unit in minimal packaging [pce]	Unit in standard packaging [pce]	ROHS compliant
A9-M6/15	hexagonal; indent	M6	6.4	15	7	8	31.5	5	7	38.5	14.5	9.3	16	11.7	100	400	Yes
A9-M8	hexagonal; indent	M8	8.4	17	8	9	32.5	10	20	40.5	14.5	9.3	16	11.7	100	400	Yes
A9-M10	hexagonal; indent	M10	10.5	18.5	10	11	34.5	20	35	44.5	14.5	9.3	16	11.7	100	300	Yes
A9-M12	hexagonal; indent	M12	13.2	21	12	14	37.5	40	50	49.5	14.5	9.3	16	11.7	50	200	Yes

A12-M

Range of cable cross section (extra flexible) [mm²] 50

	Technical information	Weight and dimensions													Logistic		Certifications
tipo	Crimping geometry	Screw diameter	ØD [mm]	B [mm]	N [mm]	M [mm]	I [mm]	Tightening torque (high conductivity screw) [nm]	Tightening torque (8.8 grade screw) [nm]	L [mm]	A [mm]	Ø [mm]	Cable stripping length [mm]	Ø1 [mm]	Unit in minimal packaging [pce]	Unit in standard packaging [pce]	ROHS compliant
A12-M6/15	hexagonal; indent	M6	6.4	15	7	8	33.5	5	7	40.5	18	11	20	13.5	50	200	Yes
A12-M8	hexagonal; indent	M8	8.4	19.3	8	9	34.5	10	20	42.5	18	11	20	13.5	50	200	Yes
A12-M10	hexagonal; indent	M10	10.5	19.3	10	11	36.5	20	35	46.5	18	11	20	13.5	50	200	Yes
A12-M10/19	hexagonal; indent	M10	10.5	19	10	11	36.5	20	35	46.5	18	11	20	13.5	50	200	Yes
A12-M12	hexagonal; indent	M12	13.2	22	12	14	39.5	40	50	51.5	18	11	20	13.5	50	200	Yes

A17-M

Range of cable cross section (extra flexible) [mm²] 70

	Technical information	Weight and dimensions													Logistic		Certifications
tipo	Crimping geometry	Screw diameter	ØD [mm]	B [mm]	N [mm]	M [mm]	I [mm]	Tightening torque (high conductivity screw) [nm]	Tightening torque (8.8 grade screw) [nm]	L [mm]	A [mm]	Ø [mm]	Cable stripping length [mm]	Ø1 [mm]	Unit in minimal packaging [pce]	Unit in standard packaging [pce]	ROHS compliant
A17-M6	hexagonal; indent	M6	6.4	23	7	8	38	5	7	45	20	13	22	16	50	200	Yes
A17-M8	hexagonal; indent	M8	8.4	23	8	9	39	10	20	47	20	13	22	16	50	150	Yes
A17-M10	hexagonal; indent	M10	10.5	23	10	11	41	20	35	51	20	13	22	16	50	150	Yes
A17-M10/19	hexagonal; indent	M10	10.5	19	10	11	41	20	35	51	20	13	22	16	50	150	Yes
A17-M12	hexagonal; indent	M12	13.2	23	12	14	44	40	50	56	20	13	22	16	50	150	Yes
A17-M14	hexagonal; indent	M14	15	25	12	15.5	45.5	65	70	57.5	20	13	22	16	25	150	Yes
A17-M16	hexagonal; indent	M16	17	27	13.5	16.5	46.5	90	90	60	20	13	22	16	25	100	Yes

A20-M

Range of cable cross section (extra flexible) [mm²] 95

	Technical information	Weight and dimensions													Logistic		Certifications
tipo	Crimping geometry	Screw diameter	ØD [mm]	B [mm]	N [mm]	M [mm]	I [mm]	Tightening torque (high conductivity screw) [nm]	Tightening torque (8.8 grade screw) [nm]	L [mm]	A [mm]	Ø [mm]	Cable stripping length [mm]	Ø1 [mm]	Unit in minimal packaging [pce]	Unit in standard packaging [pce]	ROHS compliant
A20-M8	hexagonal; indent	M8	8.4	27	8	9	42	10	20	50	24	15	27	18.4	25	100	Yes
A20-M10	hexagonal; indent	M10	10.5	27	10	11	44	20	35	54	24	15	27	18.4	25	100	Yes
A20-M12	hexagonal; indent	M12	13.2	27	12	14	47	40	50	59	24	15	27	18.4	25	100	Yes
A20-M14	hexagonal; indent	M14	15	27	12	15.5	48.5	65	70	60.5	24	15	27	18.4	25	100	Yes
A20-M16	hexagonal; indent	M16	17	27	13.5	16.5	49.5	90	90	63	24	15	27	18.4	25	100	Yes

A29-M

Range of cable cross section (extra flexible) [mm²] 120

	Technical information	Weight and dimensions													Logistic		Certifications
tipo	Crimping geometry	Screw diameter	ØD [mm]	B [mm]	N [mm]	M [mm]	I [mm]	Tightening torque (high conductivity screw) [nm]	Tightening torque (8.8 grade screw) [nm]	L [mm]	A [mm]	Ø [mm]	Cable stripping length [mm]	Ø1 [mm]	Unit in minimal packaging [pce]	Unit in standard packaging [pce]	ROHS compliant
A29-M8	hexagonal; indent	M8	8.4	30	8	9	45.5	10	20	53.5	24	16.5	27	20.5	25	50	Yes
A29-M10	hexagonal; indent	M10	10.5	30	10	11	47.5	20	35	57.5	24	16.5	27	20.5	25	50	Yes
A29-M12	hexagonal; indent	M12	13.2	30	12	14	50.5	40	50	62.5	24	16.5	27	20.5	25	50	Yes
A29-M14	hexagonal; indent	M14	15	30	12	15.5	52	65	70	64	24	16.5	27	20.5	25	100	Yes
A29-M16	hexagonal; indent	M16	17	30	13.5	16.5	53	90	90	66.5	24	16.5	27	20.5	25	50	Yes
A29-M20	hexagonal; indent	M20	21	30	20	22	58.5		150	78.5	24	16.5	27	20.5	25	75	Yes

A35-M

Range of cable cross section (extra flexible) [mm²] 150

	Technical information	Weight and dimensions													Logistic		Certifications
tipo	Crimping geometry	Screw diameter	ØD [mm]	B [mm]	N [mm]	M [mm]	I [mm]	Tightening torque (high conductivity screw) [nm]	Tightening torque (8.8 grade screw) [nm]	L [mm]	A [mm]	Ø [mm]	Cable stripping length [mm]	Ø1 [mm]	Unit in minimal packaging [pce]	Unit in standard packaging [pce]	ROHS compliant
A35-M10	hexagonal; indent	M10	10.5	34.2	11	13	54.5	20	35	65.5	26	19.2	29	23.5	25	50	Yes
A35-M12	hexagonal; indent	M12	13.2	34.2	14	16	57.5	40	50	71.5	26	19.2	29	23.5	25	50	Yes
A35-M14	hexagonal; indent	M14	15	34.2	16	18	55.5	65	70	75.5	26	19.2	29	23.5	25	50	Yes
A35-M16	hexagonal; indent	M16	17	34.2	17	19	60.5	90	90	77.5	26	19.2	29	23.5	15	30	Yes
A35-M20	hexagonal; indent	M20	21	34.2	20	22	63.5		150	83.5	26	19.2	29	23.5	15	30	Yes

A40-M

Range of cable cross section (extra flexible) [mm²] 185

	Technical information	Weight and dimensions													Logistic		Certifications
tipo	Crimping geometry	Screw diameter	ØD [mm]	B [mm]	N [mm]	M [mm]	I [mm]	Tightening torque (high conductivity screw) [nm]	Tightening torque (8.8 grade screw) [nm]	L [mm]	A [mm]	Ø [mm]	Cable stripping length [mm]	Ø1 [mm]	Unit in minimal packaging [pce]	Unit in standard packaging [pce]	ROHS compliant
A40-M10	hexagonal; indent	M10	10.5	37.5	11	13	62	20	35	73	34	21	38	25.5	15	30	Yes
A40-M12	hexagonal; indent	M12	13.2	37.5	14	16	65	40	50	79	34	21	38	25.5	15	30	Yes
A40-M14	hexagonal; indent	M14	15	37.5	16	18	67	65	70	83	34	21	38	25.5	15	30	Yes
A40-M16	hexagonal; indent	M16	17	37.5	17	19	68	90	90	85	34	21	38	25.5	15	30	Yes
A40-M20	hexagonal; indent	M20	21	37.5	20	22	71		150	91	34	21	38	25.5	15	30	Yes
