Categories > Cable lugs > Non-insulated > For copper cables >

A-M Contained palm RING TERMINAL WITH NARROW CONNECTION

RING TERMINAL WITH NARROW PALM, FOR COPPER CONDUCTORS, FOR LOW VOLTAGE CIRCUIT BREAKERS

Gallery

A-M CONTAINED PALM ring terminal with narrow connection (range-sx)

A-M CONTAINED PALM ring terminal with narrow connection (range-ft)

A-M Contained palm

RING TERMINAL WITH NARROW PALM, FOR COPPER CONDUCTORS, FOR LOW VOLTAGE CIRCUIT BREAKERS

Documentation

Instructions (pdf)

Certifications & approvals

UL (cULus)

Description

The A-M series content-attached terminals are made with electrolytic copper pipe of more than 99.9% purity. Due to the process of annealing and electrolytic tinning, the connectors are easier to compress and more resistant to mechanical stress. The flap features a contained attachment to allow connection to terminals of sizes not compatible with standard A-M terminals. The collar is provided with a chamfer and inspection hole to facilitate insertion of the conductor into the terminal and to prevent stretching of the elementary wires. The length of the collar is such that it facilitates the introduction of the lug into tool dies, thus simplifying wiring operations.

Read all Close

Common features in table.

Features

Details by type in expandable section below.

Technical information
Material composition and treatments
Classification and data ordering

Minimum operating temperature

-50 °C

Maximum operating temperature

150 °C

Number of holes on the palm

Easy insertion input

Yes

Surface treatment

tin plating

Conductor body material

Rame elettrolitico con purezza superiore al 99,95%

Customs code

85369010

A-M Contained palm

	Technical information				Material composition and treatments	Weight and dimensions													Logistic		Certifications

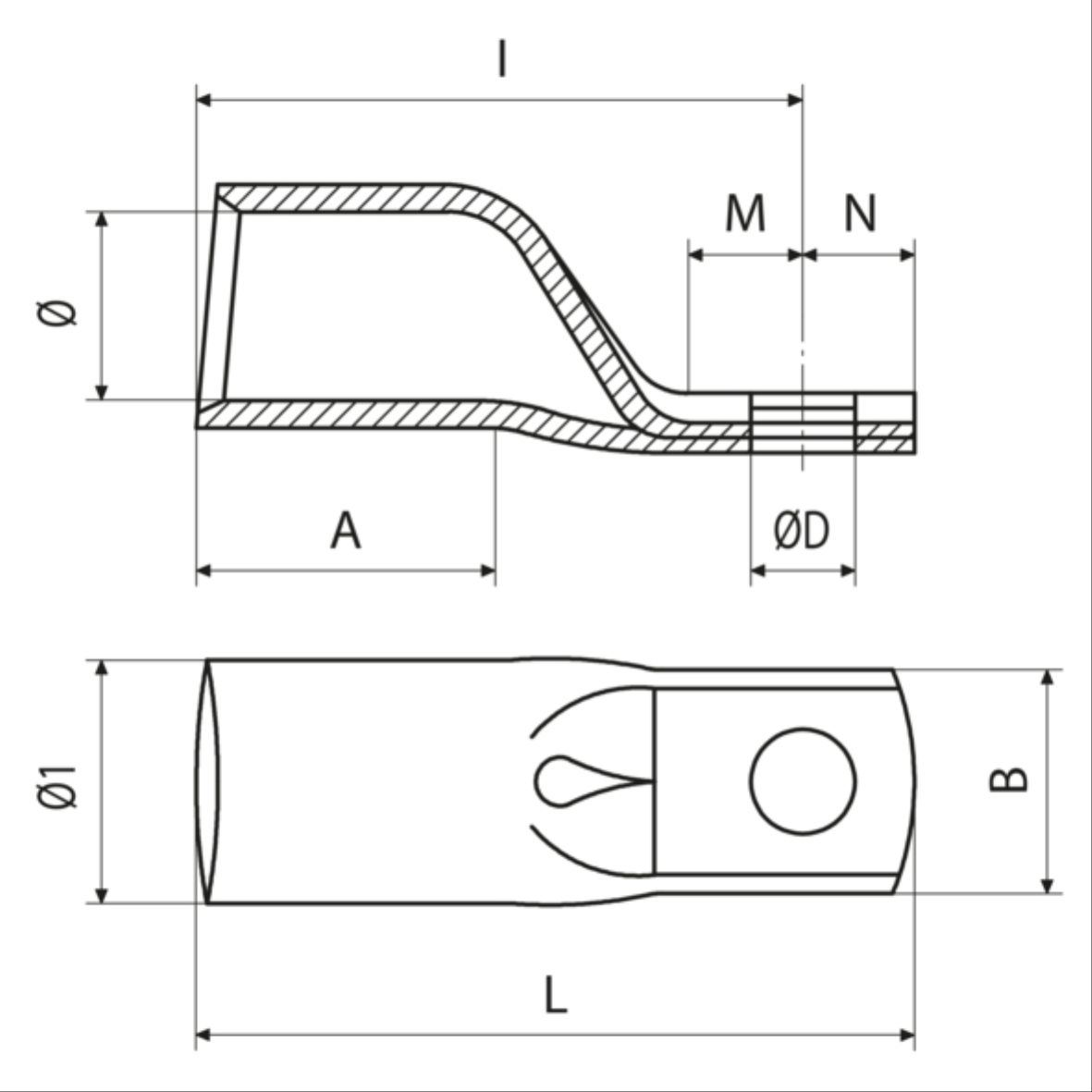

tipo	Spy hole	Crimping geometry	Range of cable cross section (flexible) [mm²]	Range of cable cross section (low stranded) [mm²]	Annealing	Screw diameter	ØD [mm]	B [mm]	N [mm]	M [mm]	I [mm]	Tightening torque (high conductivity screw) [nm]	Tightening torque (8.8 grade screw) [nm]	L [mm]	A [mm]	Ø [mm]	Cable stripping length [mm]	Ø1 [mm]	Unit in minimal packaging [pce]	Unit in standard packaging [pce]	ROHS compliant	Reference standard	UL standard
A2-M5/9	Yes	hexagonal; indent	10	10	Yes	M5	5.3	9	6	6.5	20			26	8	4.6	9	6.8	100	1000	Yes
A3-M5/9	Yes	hexagonal; indent	16	16	Yes	M5	5.3	9	6	6.5	24.5			29	11.5	5.8	13	7.9	100	1000	Yes	UL 486A-486B	UL486A-486B
A5-M5/9	Yes	hexagonal; indent	25	25	Yes	M5	5.3	9	6	6.5	25.5			31.5	10.5	7	12	10	100	500	Yes
A7B-M6/11.5		hexagonal; indent	25 - 35	35	Yes	M6	6.4	11.5	7	8	29.5	5	7	36.5	13	8.9	15	11.7	100	400	Yes
A10B-M6/11.5		hexagonal; indent	35 - 50	50	Yes	M6	6.4	11.5	7	8	33.5	5	7	40.5	16.5	10	19	13	50	200	Yes
A14B-M6/11.5		hexagonal; indent	50 - 70	70	Yes	M6	6.4	11.5	7	8	37	5	7	44	18	11.3	20	14.6	50	200	Yes
A19-M8/19	Yes	hexagonal; indent	70 - 95	95	Yes	M8	8.4	19	8	9	44.5	10	20	52.5	22.5	13.5	25	17.5	25	100	Yes
A19B-M8/15.5		hexagonal; indent	70 - 95	95	Yes	M8	8.4	15.5	8	9	44.5	10	20	52.5	22.5	13.5	25	17.5	25	100	Yes
A24B-M8/19		hexagonal; indent	95 - 120	120	Yes	M8	8.4	19	9	14	51	10	20	60	24.5	15.2	27	19.6	25	75	Yes	UL 486A-486B	UL486A-486B
A24B-M10/19		hexagonal; indent	59 - 120	120	Yes	M10	10.5	19	9	14	51	20	35	60	24.5	15.2	27	19.6	25	75	Yes
A30B-M8/19		hexagonal; indent	120 - 150	150	Yes	M8	8.4	19	9	18	61	10	20	70	28.5	16.7	32	21.5	25	50	Yes
A30B-M10/19		hexagonal; indent	120 - 150	150	Yes	M10	10.5	19	9	18	61	20	35	70	28.5	16.7	32	21.5	25	50	Yes
A37B-M10/24.5		hexagonal; indent	150 - 185	185	Yes	M10	10.5	24.5	9	18	68	20	35	77	31.5	19.2	35	24.4	15	30	Yes
A48-M10/31	Yes	hexagonal; indent	185 - 240	240	Yes	M10	10.5	31	9	13	71	20	35	80	36	21.1	40	27.2	10	20	Yes
A48-M12/31	Yes	hexagonal; indent	185 - 240	240	Yes	M12	13.2	31	12	16	74	40	50	86	36	21.1	40	27.2	10	20	Yes
A48-M16/31	Yes	hexagonal; indent	185 - 240	240	Yes	M16	17	31	17	19	77	90	90	94	33	21.1	37	27.2	10	20	Yes
A60B-M10/31		hexagonal; indent	240 - 300	300	Yes	M10	10.5	31	12	16	83	20	35	95	42	23.7	47	30.6	10	20	Yes
A60B-M12/31		hexagonal; indent	240 - 300	300	Yes	M12	13.2	31	12	16	83	40	50	95	42	23.7	47	30.6	10	20	Yes
A5-M6/11	Yes	hexagonal; indent	25	25	Yes	M6	6.4	11	6	7	26	5	7	32	10.5	7	12	9.3	100	500	Yes
A5-M8/13.5	Yes	hexagonal; indent	25	25	Yes	M8	8.4	13.5	8	9	28	10	20	36	10.5	7	12	9.3	100	500	Yes
A5-M10/14	Yes	hexagonal; indent	25	25	Yes	M10	10.5	14	10	11	30	20	35	40	10.5	7	12	9.3	100	500	Yes
A7B-M8/14		hexagonal; indent	25 - 35	35	Yes	M8	8.4	14	8	9	30.5	10	20	38.5	13.2	8.9	15	11.7	100	400	Yes
A10B-M8/16.5		hexagonal; indent	35 - 50	50	Yes	M8	8.4	16.5	8	9	34.5	10	20	42.5	16.5	10	19	13	50	200	Yes
A10B-M8/14		hexagonal; indent	35 - 50	50	Yes	M8	8.4	14	8	9	34.5	10	20	42.5	16.5	10	19	13	50	200	Yes
A14B-M8/16.5		hexagonal; indent	50 - 70	70	Yes	M8	8.4	16.5	8	9	38	10	20	46	18	11.3	20	14.6	50	200	Yes
A14B-M8/15.5		hexagonal; indent	50 - 70	70	Yes	M8	8.4	15.5	8	9	38	10	20	46	18	11.3	20	14.6	50	200	Yes
A19-M10/19	Yes	hexagonal; indent	70 - 95	95	Yes	M10	10.5	19	10	11	46.5	20	35	56.5	22.5	13.5	25	17.5	25	100	Yes
A37-M10/31	Yes	hexagonal; indent	150 - 185	150	Yes	M10	10.5	31	9	13	65	20	35	74	29	19.2	32	24.4	15	30	Yes
A37-M12/31	Yes	hexagonal; indent	150 - 185	150	Yes	M12	13.2	31	12	16	68	40	50	80	29	19.2	32	24.4	15	30	Yes
A60-M12/39	Yes	hexagonal; indent	240 - 300	300	Yes	M12	13.2	39	14	20	85	40	50	99	40	23.7	44	30.6	10	20	Yes
A80-M12/41	Yes	hexagonal; indent	300 - 400	400	Yes	M12	13.2	41	19	22	94	40	50	113	44	27	49	35	5	15	Yes
A48B-M12/31		hexagonal; indent	185 - 240	240	Yes	M12	13.2	31	12	14	67.5	40	50	79.5	36	21.1	40	27.2			Yes
A160B-M20S/61		hexagonal; indent	630	800		M20	21	61	31.5	34	132		150	163.5	60	38	66	50			Yes
