7900A Pg MAXIINOX CABLE GLAND
MAXIINOX CABLE GLAND, IN AISI 316L STAINLESS STEEL, PG PITCH, IP68
Gallery
![](https://cdn.cembre.com/categorie/immagini/10cm/7900A PG_range-sx.jpg)
![](https://cdn.cembre.com/categorie/immagini/10cm/7900A PG_range-sx.jpg)
7900A Pg
MAXIINOX CABLE GLAND, IN AISI 316L STAINLESS STEEL, PG PITCH, IP68
Certifications & approvals
-
CE
-
UKCA
Features
Range of operating temperature (dynamic)
-25 ÷ 100 °C
Range of operating temperature (static)
-40 ÷ 100 °C
Ingress Protection
IP68
External seal
Yes
Counter nut
No
Dust-proof disc
No
Internal washers
No
EMC
No
Markings found
factory mark; family product; thread type
Colour
Steel
Reference standard
DIN 40 430; CEI EN 62 444
Self-extinguishing fire class according to UL 94
NA
Entry bush material
stainless steel AISI 316L
Inner seal material
Neoprene
Outer seal material
Nitrile 70 sh A
Body material
stainless steel AISI 316L
Halogen free
No
Cage material
Polyamide PA6.6
Type of packaging
; box
Customs code
73269098
ETIM Class 7
Cable gland [EC000441]
EN 45545-2 certification
HL1; HL2
ROHS compliant
Yes

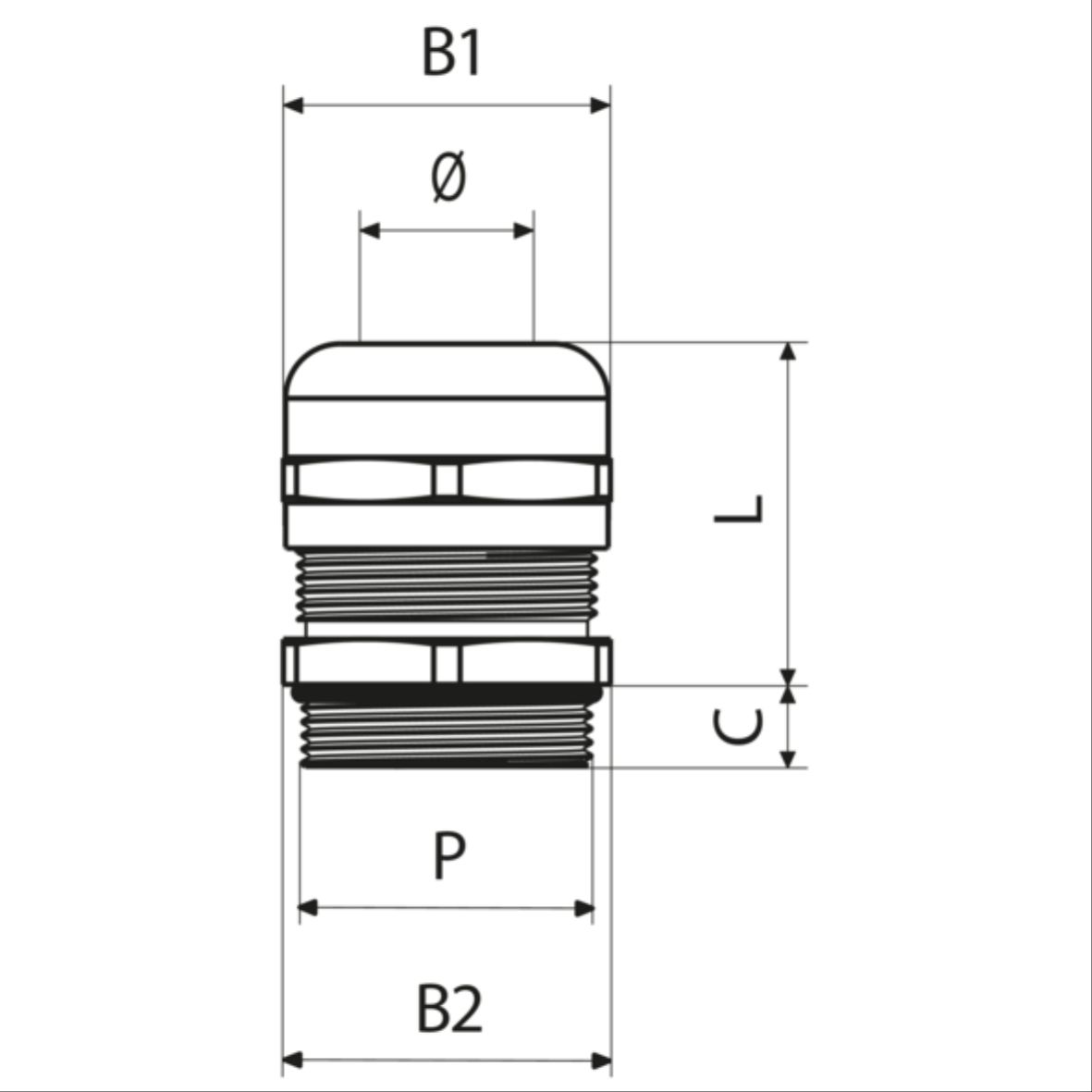

![](https://cdn.cembre.com/categorie/immagini/10cm/7900A Pg_drwr-dim.jpg)
7900A Pg
Technical information | Weight and dimensions | Logistic | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
tipo | P | Tightening torque [nm] | Range of cable housing diameter [mm] | B1 [mm] | B2 [mm] | C [mm] | L [mm] | Fixing hole diameter [mm] | Width [mm] | Gross weight [g] | Unit in minimal packaging [pce] | Unit in standard packaging [pce] | Minimum order quantity [pce] |
7900A.07 | Pg7 | 6.25 | 3 ÷ 7 | 16 | 16 | 5 | 16 ÷ 20 | 12.7 | 18 | 18,667 | 20 | 60 | 20 |
7900A.09 | Pg9 | 6.25 | 4 ÷ 8 | 17 | 17 | 6 | 17 ÷ 23 | 15.5 | 19 | 19,867 | 20 | 60 | 20 |
7900A.11 | Pg11 | 6.25 | 4.5 ÷ 11 | 20 | 20 | 6 | 20 ÷ 25 | 18.8 | 22.5 | 20 | 100 | 20 | |
7900A.13 | Pg13,5 | 7.5 | 5 ÷ 12 | 22 | 22 | 6.5 | 20 ÷ 26 | 20.5 | 24.5 | 20 | 100 | 20 | |
7900A.16 | Pg16 | 7.5 | 7 ÷ 13 | 24 | 24 | 6.5 | 20 ÷ 27 | 22.6 | 27 | 43,790 | 20 | 40 | 20 |
7900A.21 | Pg21 | 10 | 10 ÷ 17 | 30 | 30 | 7 | 24 ÷ 30 | 28.5 | 33.3 | 68,917 | 15 | 60 | 15 |
7900A.29 | Pg29 | 15 | 17 ÷ 25 | 40 | 40 | 8 | 30 ÷ 37 | 37.2 | 44.5 | 145,700 | 10 | 20 | 10 |
7900A.36 | Pg36 | 25 | 20 ÷ 32 | 50 | 50 | 8 | 38 ÷ 48 | 47.2 | 55 | 239,429 | 7 | 7 | |
7900A.42 | Pg42 | 25 | 28 ÷ 38 | 57 | 57 | 10 | 36 ÷ 46 | 54.2 | 63 | 5 | 5 | ||
7900A.48 | Pg48 | 25 | 34 ÷ 45 | 67 | 67 | 15 | 40 ÷ 52 | 60 | 73.5 | 5 | 5 |
