Categories > Cable lugs > Non-insulated > For copper cables >

A-2M Angled

Gallery

A-2M Angled

Documentation

Instructions (pdf)

Certifications & approvals

UL (cULus)

Description

The 315° and 345° bent terminals of the A-2M series are made from electrolytic copper pipe of greater than 99.9% purity. Due to the process of annealing and electrolytic tinning, the connectors are easier to compress and more resistant to mechanical stress. The flap features a two-hole attachment to ensure maximum stability even under violent electrodynamic stress. The collar is provided with a chamfer and inspection hole to facilitate insertion of the conductor into the terminal and to avoid stretching of the elementary wires. The length of the collar is such as to facilitate the introduction of the terminal lug into the tool dies, thus simplifying wiring operations.

Read all Close

Common features in table.

Features

Details by type in expandable section below.

Technical information
Material composition and treatments

Minimum operating temperature

-50 °C

Maximum operating temperature

150 °C

Spy hole

Yes

Number of holes on the palm

Easy insertion input

Yes

Surface treatment

tin plating

Conductor body material

Rame elettrolitico con purezza superiore al 99,95%

Annealing

Yes

A-2M Angled

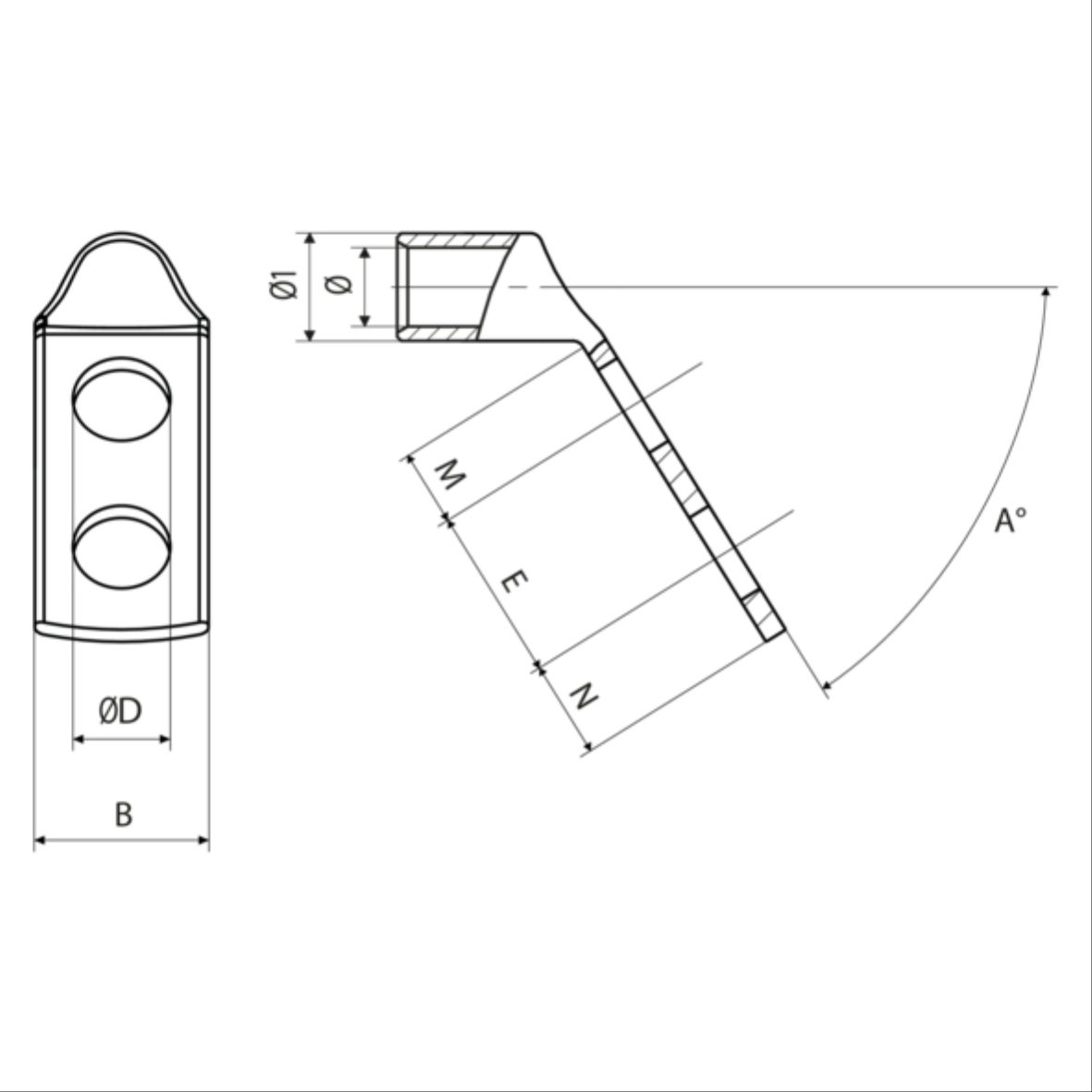

	Technical information				Weight and dimensions														Logistic		Classification and data ordering	Certifications
tipo	α [°]	Crimping geometry	Range of cable cross section (flexible) [mm²]	Range of cable cross section (low stranded) [mm²]	Screw diameter	ØD [mm]	B [mm]	N [mm]	M [mm]	Centre distance between holes [mm]	Tightening torque (high conductivity screw) [nm]	Tightening torque (8.8 grade screw) [nm]	A [mm]	Ø [mm]	Cable stripping length [mm]	Ø1 [mm]	Hole spacing range [mm]	Slot length [mm]	Unit in minimal packaging [pce]	Unit in standard packaging [pce]	Customs code	ROHS compliant	Reference standard	UL standard
A5-2M8-24-24/345	15	hexagonal; indent	25	25	M8	8.4	15	11	24	24	10	20	13	7	15	9.3			100	300	85369010	Yes
A5-2M12-3029/345	15	hexagonal; indent	25	25	M12	13.2	21	14	29	30	40	50	10.5	7	12	11			100	200	85369010
A10-2M8-2424/345	15	hexagonal; indent	35 - 50	50	M8	8.4	19	11	24	24	10	20	16.5	10	19	13			50	150	85369010	Yes
A14-2M8-2424/345	15	hexagonal; indent	50 - 70	70	M8	8.4	21	11	24	24	10	20	18	11.3	20	14.6			50	100	85369010	Yes
A14-2M102426/315	45	hexagonal; indent	50 - 70	70	M10	10.5	21	11	26	24	20	35	18	11.3	20	14.6			50	100	85369010
A14-2M102426/345	15	hexagonal; indent	50 - 70	70	M10	10.5	21	11	26	24	20	35	18	11.3	20	14.6			50	100	85369010
A14-2M123029/345	15	hexagonal; indent	50 - 70	70	M12	13.2	22	14	29	29	40	50	18	11.3	20	14.6			50	100	85369010	Yes
A19-2M8-2424/345	15	hexagonal; indent	70 - 95	95	M8	8.4	25	11	24	24	10	20	22.5	13.5	25	17.5			25	75	85369010	Yes		UL486A-486B
A19-2M102426/345	15	hexagonal; indent	70 - 95	95	M10	10.5	25	11	26	24	20	35	22.5	13.5	25	17.5			25	75	85369010
A19-2M123029/345	15	hexagonal; indent	70 - 95	95	M12	13.2	25	14	29	30	40	50	22.5	13.5	25	17.5			25	75	85369010	Yes
A24-2M8-2429/345	15	hexagonal; indent	95 - 120	120	M8	8.4	28.5	11	29	24	10	20	24	15.2	27	19.6			25	50	85369010	Yes
A24-2M102429/345	15	hexagonal; indent	95 - 120	120	M10	10.5	28.5	11	29	24	20	35	24	15.2	27	19.6			25	50	85369010	Yes
A24-2M123029/345	15	hexagonal; indent	95 - 120	120	M12	13.2	28.5	14	29	30	40	50	24	15.2	27	19.6			25	50	85369010	Yes
A30-2M8-2429/345	15	hexagonal; indent	120 - 150	150	M8	8.4	31.5	11	29	24	10	20	24	16.7	27	21.5			15	30	85369010	Yes
A30-2M102428/345	15	hexagonal; indent	120 - 150	150	M10	10.5	31.5	11	28	24	20	35	26.5	16.7	30	21.5			25	50	85369010	Yes
A30-2M123029/345	15	hexagonal; indent	120 - 150	150	M12	13.2	31.5	14	29	30	40	50	26.5	16.7	30	21.5			20	40	85369010	Yes
A37-2M123031/345	15	hexagonal; indent	150 - 185	185	M12	13.2	35.5	14	31	30	40	50	29	19.2	32	24.4			15	30	85369010	Yes
A37-2M10-25/315	45	hexagonal; indent	150 - 185	185	M10	10.5	35.5	11	13	25	20	35	29	19.2	32	24.4			15	15	85369010
A48-2M123031/345	15	hexagonal; indent	185 - 240	240	M12	13.2	39	14	31	30	40	50	33	21.1	37	27.2			10	20	85369010	Yes
A48-2M12S31AS345	15	hexagonal; indent	185 - 240	240	M12	13.2	31	14	30	30	40	50	33	21.1	37	27.2	27.6 - 32.4	18	10	20	85369010	Yes	UL 486A-486B
A48-2M12-30/45	45	hexagonal; indent	185 - 240	240	M12	13.2	39	14	16	30	40	50	33	21.1	37	27.2			10	20	85369010
A60-2M10-25/340	20	hexagonal; indent	240 - 300	300	M10	10.5	44	11	16	25	20	35	42	23.7	47	30.6						Yes
A48-2M12/345	15	hexagonal; indent	185 - 240	240	M12	13.2	39	14	16	44.5	40	50	33	21.1	37	27.2					85369010
A60-2M123038/345	15	hexagonal; indent	240 - 300	300	M12	13.2	44	14	38	30	40	50	40	23.7	44	30.6			10	20	85369010	Yes	UL 486A-486B	UL486A-486B
