1901 M MAXIBLOCK CABLE GLAND

MAXIBLOCK CABLE GLAND, IN POLYAMIDE PA6.6, WITH LONG THREAD, METRIC PITCH, IP68

Gallery

1901 M

MAXIBLOCK CABLE GLAND, IN POLYAMIDE PA6.6, WITH LONG THREAD, METRIC PITCH, IP68

Documentation

Instructions (pdf)

Certifications & approvals

CE
UKCA
UL (cULus)
UL (cURus)
VDE

Features

Technical information
Material composition and treatments
Logistic
Classification and data ordering
Certifications

Range of operating temperature (dynamic)

-20 ÷ 90 °C

Range of operating temperature (static)

-40 ÷ 100 °C

Ingress Protection

IP68

Self-extinguishing fire class according to UL 94

Entry bush material

Polyamide PA6.6

Inner seal material

Neoprene

Body material

Polyamide PA6.6

Type of packaging

box

Electrocode

36A

ETIM Class 7

Cable gland [EC000441]

Customs code

39269097

UL standard

UL 514B

ROHS compliant

Yes

EN ISO 4892-2

Yes

1901 M

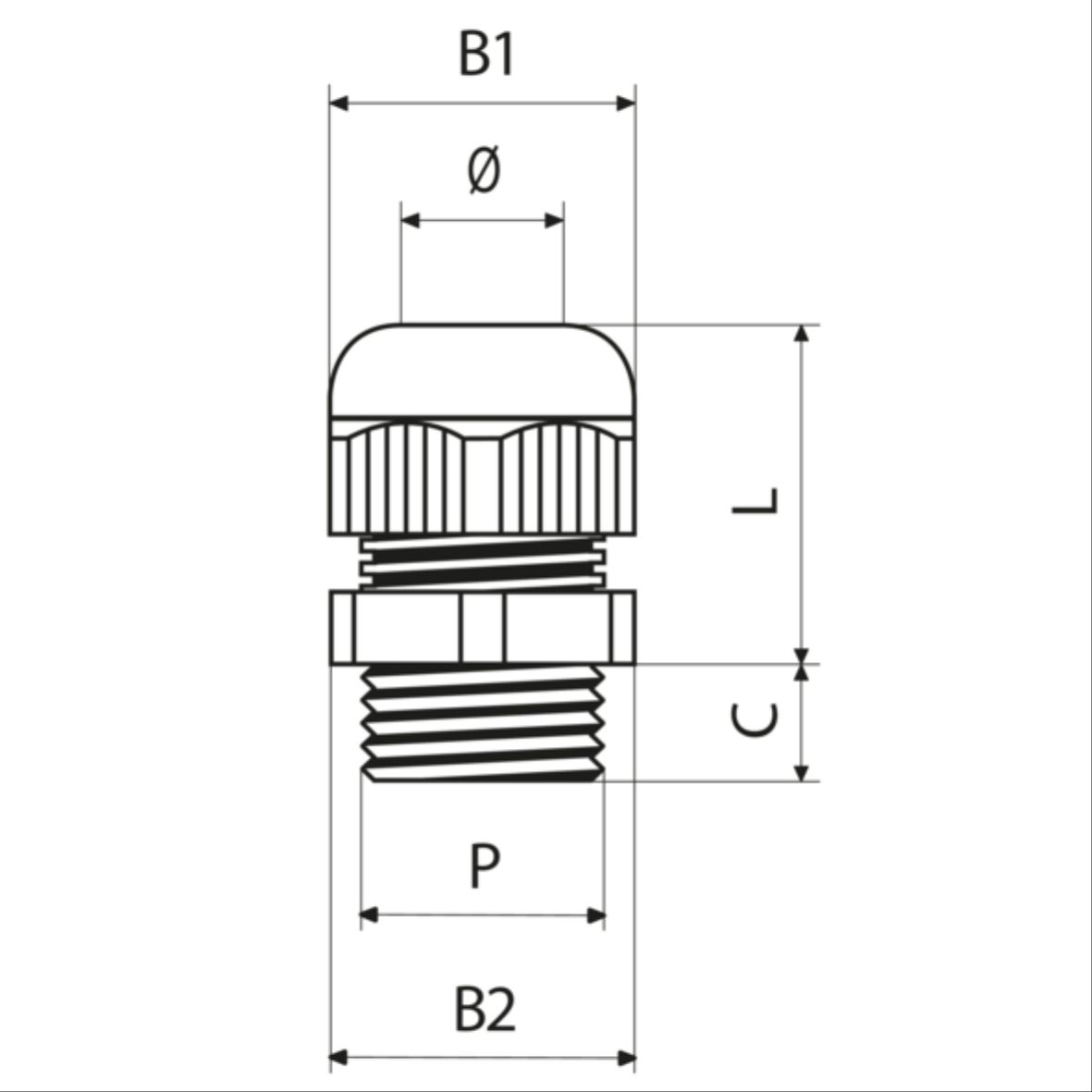

	Technical information			Material composition and treatments	Weight and dimensions									Logistic
tipo	P	External seal	Colour	Outer seal material	Tightening torque [nm]	Range of cable housing diameter [mm]	B1 [mm]	B2 [mm]	C [mm]	L [mm]	Fixing hole diameter [mm]	Width [mm]	Gross weight [g]	Unit in standard packaging [pce]
1901.M12	M12x1.5	No	Grey		2.7	3.5 ÷ 7	15	15	15	18 ÷ 22	12.2	16.5	3,750	100
1901.M12N	M12x1.5	No	Black		2.7	3.5 ÷ 7	15	15	15	18 ÷ 22	12.2	16.5	3,820	100
1901.M12G	M12x1.5	No	Dark grey		2.7	3.5 ÷ 7	15	15	15	18 ÷ 22	12.2	16.5	3,940	100
1901.M16	M16x1.5	No	Grey		5	5 ÷ 10	19	19	15	22 ÷ 27	16.2	21.4	7,200	100
1901.M16N	M16x1.5	No	Black		5	5 ÷ 10	19	19	15	22 ÷ 27	16.2	21.4	7,160	100
1901.M16G	M16x1.5	No	Dark grey		5	5 ÷ 10	19	19	15	22 ÷ 27	16.2	21.4	7,060	100
1901.M20	M20x1.5	No	Grey		7	7 ÷ 13	25	25	15	24 ÷ 30	20.5	25	12,520	50
1901.M20N	M20x1.5	No	Black		7	7 ÷ 13	25	25	15	24 ÷ 30	20.5	25	12,800	50
1901.M20G	M20x1.5	No	Dark grey		7	7 ÷ 13	25	25	15	24 ÷ 30	20.5	25	12,460	50
1901.M25	M25x1.5	No	Grey		7.5	10 ÷ 17	30	30	15	30 ÷ 41	25.4	33	18,920	50
1901.M25N	M25x1.5	No	Black		7.5	10 ÷ 17	30	30	15	30 ÷ 41	25.4	33	19,200	50
1901.M25G	M25x1.5	No	Dark grey		7.5	10 ÷ 17	30	30	15	30 ÷ 41	25.4	33	19,330	50
1901.M32	M32x1.5	Yes	Grey	Neoprene	8	13 ÷ 21	36	36	15	33 ÷ 44	32.5	39.5	30,480	25
1901.M32N	M32x1.5	Yes	Black	Neoprene	8	13 ÷ 21	36	36	15	33 ÷ 44	32.5	39.5	30,000	25
1901.M32G	M32x1.5	Yes	Dark grey	Neoprene	8	13 ÷ 21	36	36	15	33 ÷ 44	32.5	39.5	30,224	25
1901.M40	M40x1.5	Yes	Grey	Neoprene	8	19 ÷ 28	46	46	18	36 ÷ 45	40.5	51	54,520	15
1901.M40N	M40x1.5	Yes	Black	Neoprene	8	19 ÷ 28	46	46	18	36 ÷ 45	40.5	51	53,333	15
1901.M40G	M40x1.5	Yes	Dark grey	Neoprene	8	19 ÷ 28	46	46	18	36 ÷ 45	40.5	51	53,733	15
1901.M50	M50x1.5	Yes	Grey	Neoprene	15	27 ÷ 35	55	55	18	43 ÷ 52	50.5	61	84,000	10
1901.M50N	M50x1.5	Yes	Black	Neoprene	15	27 ÷ 35	55	55	18	43 ÷ 52	50.5	61	84,800	10
1901.M50G	M50x1.5	Yes	Dark grey	Neoprene	15	27 ÷ 35	55	55	18	43 ÷ 52	50.5	61	84,110	10
1901.M63	M63x1.5	Yes	Grey	Neoprene	15	34 ÷ 45	66	66	18	45 ÷ 55	64	72	115,600	5
1901.M63N	M63x1.5	Yes	Black	Neoprene	15	34 ÷ 45	66	66	18	45 ÷ 55	64	72	114,400	5
1901.M63G	M63x1.5	Yes	Dark grey	Neoprene	15	34 ÷ 45	66	66	18	45 ÷ 55	64	72	114,420	5
