Categories > Cable glands > Plastic > IP68 cable glands >

1901 Pg MAXIBLOCK CABLE GLAND

MAXIBLOCK CABLE GLAND, IN POLYAMIDE PA6.6, WITH LONG THREAD, PG PITCH, IP68
Gallery

1901 Pg

MAXIBLOCK CABLE GLAND, IN POLYAMIDE PA6.6, WITH LONG THREAD, PG PITCH, IP68
Documentation
Certifications & approvals
  • CE
    CE
  • UKCA
    UKCA
  • UL (cURus)
    UL (cURus)
  • UL (cULus)
    UL (cULus)

Features
  • Technical information
  • Material composition and treatments
  • Logistic
  • Classification and data ordering
  • Certifications
Range of operating temperature (dynamic)
-20 ÷ 90   °C
Range of operating temperature (static)
-40 ÷ 100   °C
Ingress Protection
IP68
Self-extinguishing fire class according to UL 94
V2
Entry bush material
Polyamide PA6.6
Inner seal material
Neoprene
Body material
Polyamide PA6.6
Type of packaging
box
Electrocode
36A
ETIM Class 7
Cable gland [EC000441]
Customs code
39269097
ROHS compliant
Yes
EN ISO 4892-2
Yes

1901 Pg
Technical information Material composition and treatments Weight and dimensions

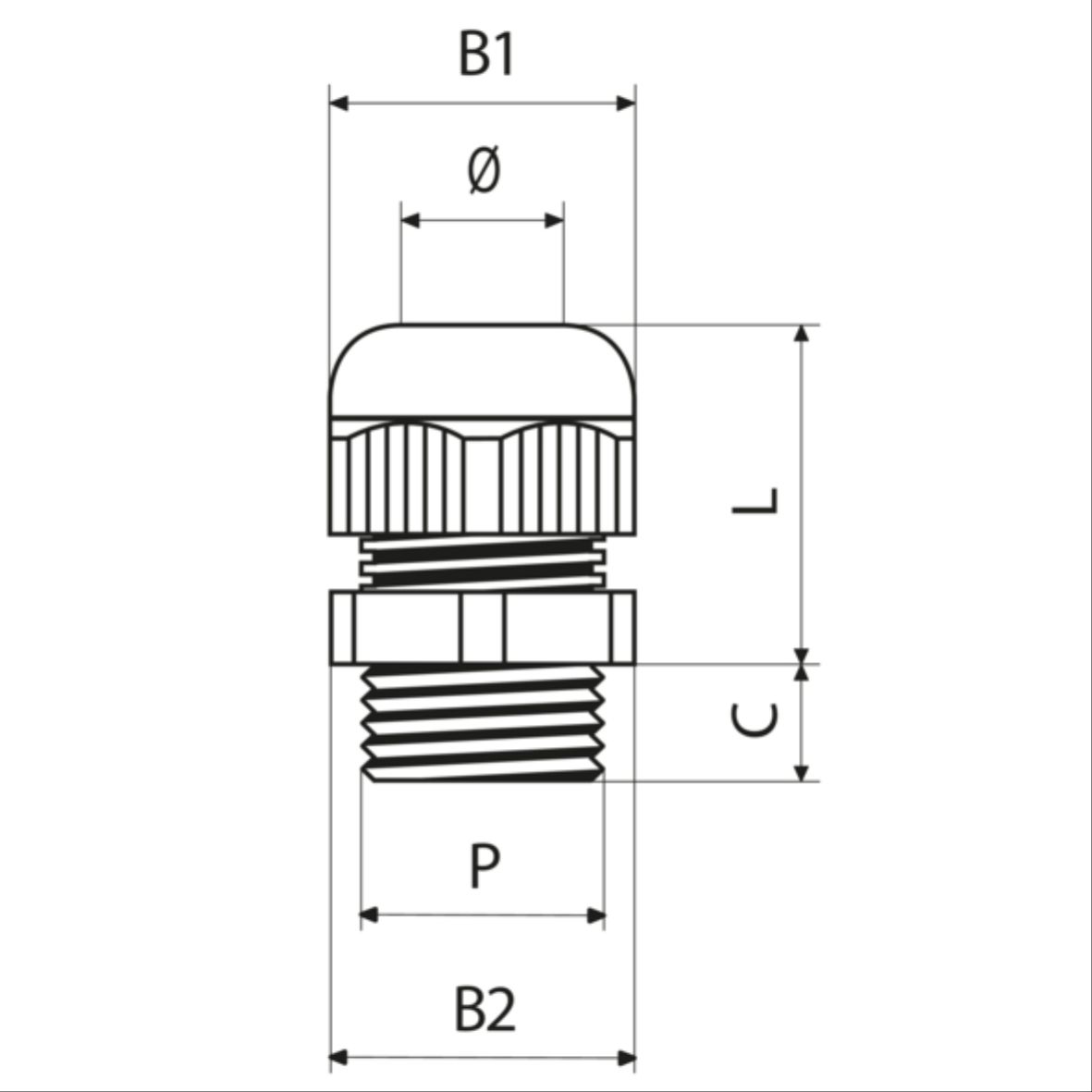

tipo P External seal Colour Outer seal material Tightening torque [nm] Range of cable housing diameter [mm] B1 [mm] B2 [mm] C [mm] L [mm] Fixing hole diameter [mm] Width [mm] Gross weight [g]
1901.07 Pg7 No Grey RAL 7035 2.5 3.5 ÷ 7 15 15 15 18 ÷ 22 12.7 16.5 4,200
1901.07N Pg7 No Black RAL 9005 2.5 3.5 ÷ 7 15 15 15 18 ÷ 22 12.7 16.5 4,135
1901.09 Pg9 No Grey RAL 7035 3.75 5 ÷ 8 19 19 15 22 ÷ 26 15.5 21 7,180
1901.09N Pg9 No Black RAL 9005 3.75 5 ÷ 8 19 19 15 22 ÷ 26 15.5 21 7,200
1901.11 Pg11 No Grey RAL 7035 3.75 5 ÷ 11 22 22 15 23 ÷ 28 18.8 24.5 10,180
1901.11N Pg11 No Black RAL 9005 3.75 5 ÷ 11 22 22 15 23 ÷ 28 18.8 24.5 9,780
1901.13 Pg13.5 No Grey RAL 7035 5 7 ÷ 12 24 24 15 24 ÷ 29 20.5 27 11,360
1901.13N Pg13.5 No Black RAL 9005 5 7 ÷ 12 24 24 15 24 ÷ 29 20.5 27 11,160
1901.16 Pg16 No Grey RAL 7035 5 10 ÷ 14 27 27 15 26 ÷ 31 22.6 29 15,750
1901.16N Pg16 No Black RAL 9005 5 10 ÷ 14 27 27 15 26 ÷ 31 22.6 29 14,920
1901.21 Pg21 Yes Grey RAL 7035 Neoprene 7.5 13 ÷ 18 33 33 15 30 ÷ 35 28.5 36.5 23,000
1901.21N Pg21 Yes Black RAL 9005 Neoprene 7.5 13 ÷ 18 33 33 15 30 ÷ 35 28.5 36.5 22,720
1901.29 Pg29 Yes Grey RAL 7035 Neoprene 8 18 ÷ 25 42 42 15 33 ÷ 39 37.2 46 38,800
1901.29N Pg29 Yes Black RAL 9005 Neoprene 8 18 ÷ 25 42 42 15 33 ÷ 39 37.2 46 37,840
1901.36 Pg36 Yes Grey RAL 7035 Neoprene 10 20 ÷ 32 53 53 18 42 ÷ 49 47.2 58.5 81,600
1901.36N Pg36 Yes Black RAL 9005 Neoprene 10 20 ÷ 32 53 53 18 42 ÷ 49 47.2 58.5 79,400
1901.42 Pg42 Yes Grey RAL 7035 Neoprene 10 28 ÷ 38 60 60 18 42 ÷ 50 54.2 67 104,800
1901.42N Pg42 Yes Black RAL 9005 Neoprene 10 28 ÷ 38 60 60 18 42 ÷ 50 54.2 67
1901.48 Pg48 Yes Grey RAL 7035 Neoprene 15 37 ÷ 45 66 66 18 45 ÷ 55 60 72 114,400
1901.48N Pg48 Yes Black RAL 9005 Neoprene 15 37 ÷ 45 66 66 18 45 ÷ 55 60 72
