7900A M MAXIINOX CABLE GLAND

MAXIINOX CABLE GLAND, IN AISI 316L STAINLESS STEEL, METRIC PITCH, IP68

Gallery

MAXIINOX CABLE GLAND, IN AISI 316L STAINLESS STEEL, METRIC PITCH, IP68

Certifications & approvals

Features

Range of operating temperature (dynamic)

-25 ÷ 100 °C

Range of operating temperature (static)

-40 ÷ 100 °C

Ingress Protection

IP68

External seal

Yes

Colour

Steel

Entry bush material

stainless steel AISI 316L

Inner seal material

Neoprene

Body material

stainless steel AISI 316L

Cage material

Polyamide PA6.6

Electrocode

36A

ETIM Class 7

Cable gland [EC000441]

Customs code

73269098

ROHS compliant

Yes

7900A M

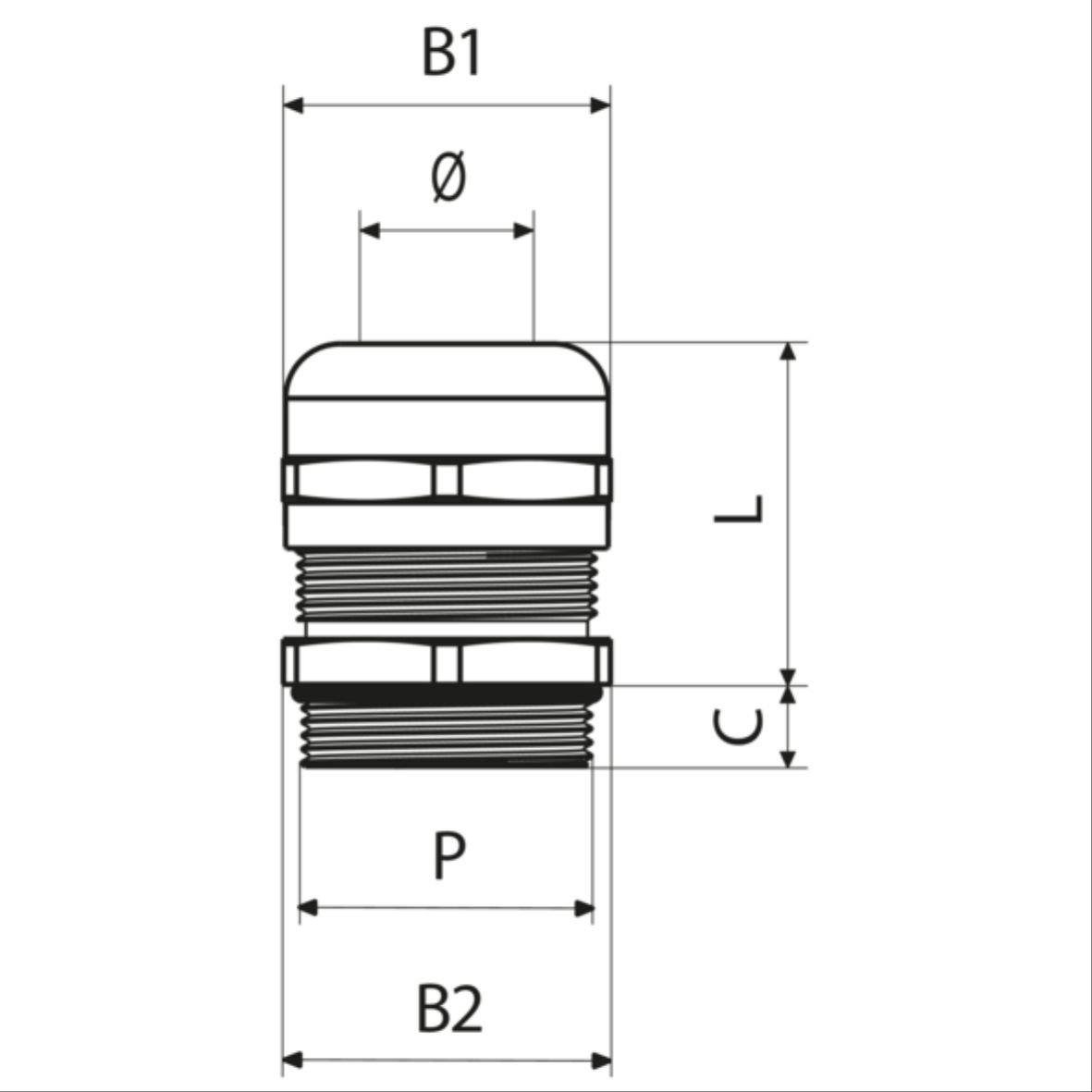

	Technical information	Material composition and treatments	Weight and dimensions									Logistic
tipo	P	Outer seal material	Tightening torque [nm]	Range of cable housing diameter [mm]	B1 [mm]	B2 [mm]	C [mm]	L [mm]	Fixing hole diameter [mm]	Width [mm]	Gross weight [g]	Type of packaging	Unit in minimal packaging [pce]	Unit in standard packaging [pce]
7900A.M12	M12x1.5	Nitrile 70 sh A	6	3 ÷ 7	16	16	6.5	16 ÷ 20	12.2	18		; box	20	20
7900A.M16	M16x1.5	Nitrile 70 sh A	6	4.5 ÷ 10	20	20	7	20 ÷ 25	16.2	22.5	27,700	; box	20	20
7900A.M20	M20x1.5	Nitrile 70 sh A	8	7 ÷ 13	24	24	8	20 ÷ 27	20.5	27	39,450	; box	20	20
7900A.M25	M25x1.5	Nitrile 80 sh A	8	10 ÷ 17	29	29	8	24 ÷ 30	25.4	32	62,113	; box	15	15
7900A.M32	M32x1.5	Nitrile 70 sh A	18	11 ÷ 21	36	36	9	27 ÷ 34	32.5	40	103,000	box
7900A.M40	M40x1.5	Nitrile 70 sh A	18	19 ÷ 28	45	45	9	34 ÷ 42	40.5	50		box
7900A.M50	M50x1.5	Nitrile 70 sh A	18	26 ÷ 35	54	54	10	35 ÷ 43	50.5	59.5		box
7900A.M63	M63x1.5	Nitrile 70 sh A	25	34 ÷ 45	67	67	15	40 ÷ 52	64	73.5	437,600	box
