Categories > Cable glands and cable entry system > Brass > IP54 cable glands >

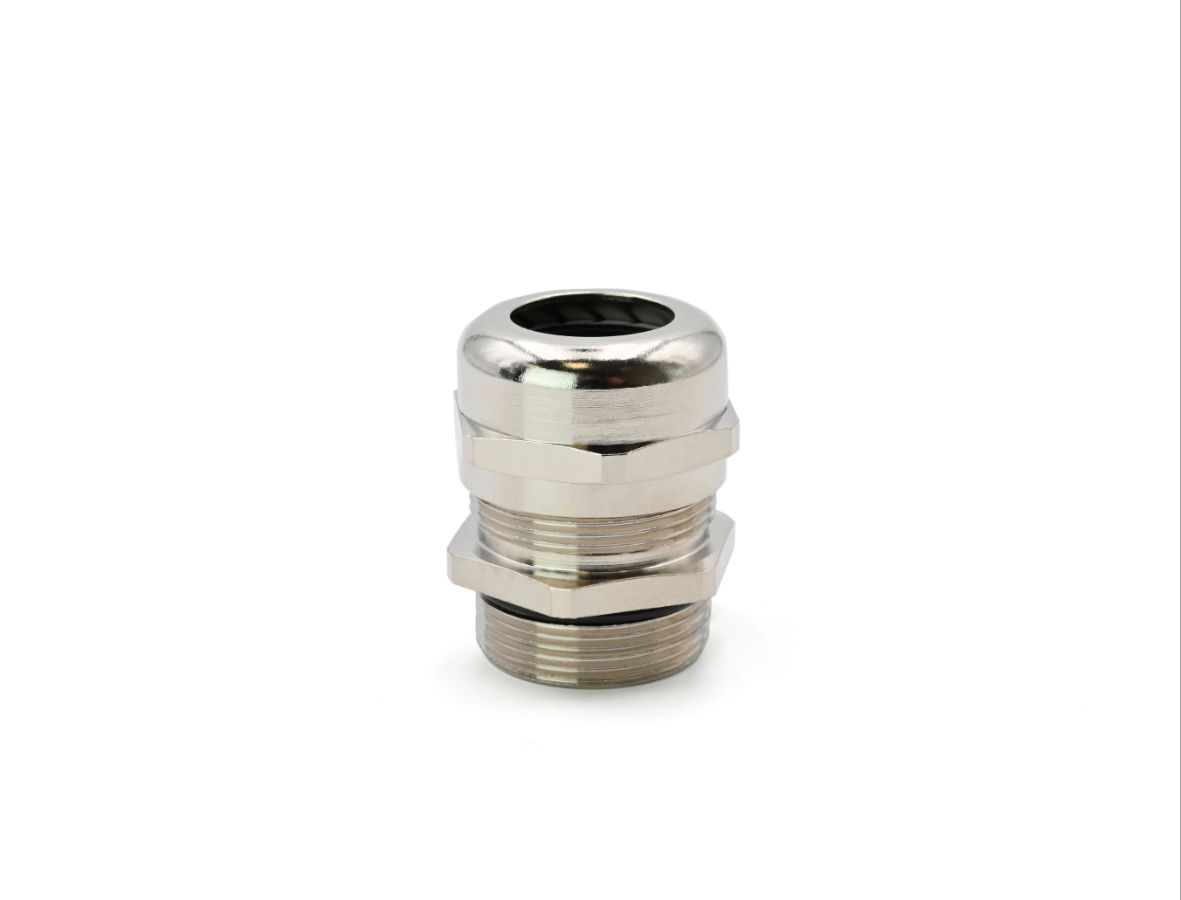

20Q2

Gallery

20Q2

Common features in table.

Features

Details by type in expandable section below.

Technical information
Material composition and treatments
Weight and dimensions
Certifications

Range of operating temperature (dynamic)

-25 ÷ 100 °C

External seal

Yes

Colour

silver

Surface treatment

nickel plating

Entry bush material

brass

Body material

brass

Spanner size for tightening the entry bush

32 mm

Range of length of total entry bush dimensions

40 mm

ROHS compliant

Yes

20Q2

	Technical information		Material composition and treatments		Weight and dimensions				Logistic		Classification and data ordering
tipo	P	Internal washers	Inner seal material	Outer seal material	B2 [mm]	C [mm]	ØF [mm]	Width [mm]	Unit in minimal packaging [pce]	Unit in standard packaging [pce]	Customs code
20Q201634N/1	Pg16				32	7	22.6
20Q202134N	Pg21	Yes	Neoprene	Neoprene	30	15	28.5	34.5	40	40	74198090

20Q201634N/1

P Pg16

Internal washers –

Inner seal material –

Outer seal material –

B2 [mm] 32

C [mm] 7

ØF [mm] 22.6

Width [mm] –

Unit in minimal packaging [pce] –

Unit in standard packaging [pce] –

Customs code –

20Q202134N

P Pg21

Internal washers Yes

Inner seal material Neoprene

Outer seal material Neoprene

B2 [mm] 30

C [mm] 15

ØF [mm] 28.5

Width [mm] 34.5

Unit in minimal packaging [pce] 40

Unit in standard packaging [pce] 40

Customs code 74198090
