Categories > Tools > Systems for railway applications > Installing electrical contacts > HTEP.SK

HTEP.SK

Hydraulische Werkzeuge

Gallery

HTEP.SK

Hydraulische Werkzeuge

Included into package

OG13.2T: PLUNGER
CAL19.20: GAUGE

Documentation

Manual (pdf)

Description

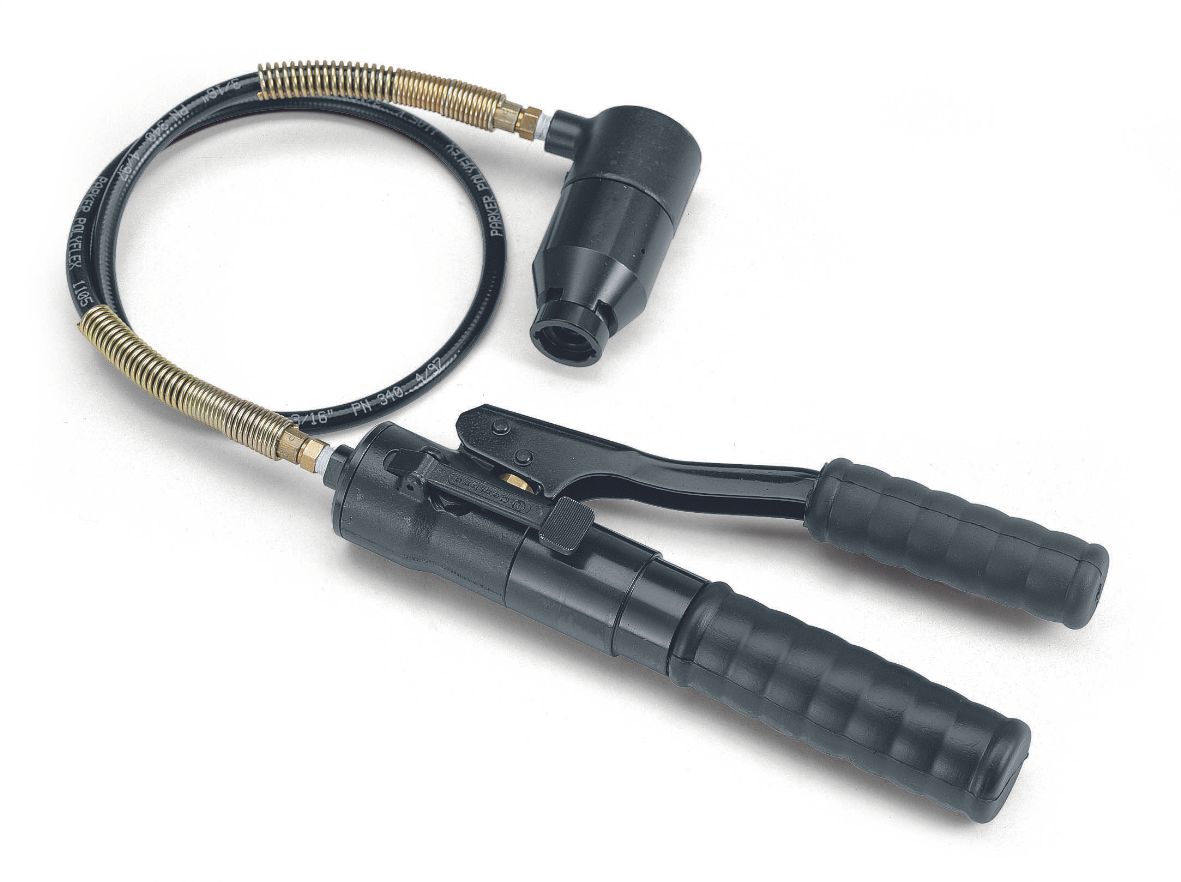

Lieferumfang: • Hydraulische Handpresse mit 900 mm Hochdruckschlauch und fest angeschlossenem Kopf • 1 Spreizdorn OG13.2T und 1 Handsenker • Lehre Typ CAL 19.20 für die Kontrolle der Bohrung • Metallkoffer Typ VAL-HTEP Hydraulische Handpumpe HTP mit max. 600 bar und einem Hochdruckschlauch mit Schnellkupplung zum Anschluss von hydraulischen Werkzeugen z.B. Mutternsprenger RHTD270 oder RHTEP zum Einbau von Schienenkontakten.

Read all Close

Features

Technical information
Weight and dimensions
Logistic
Classification and data ordering
Compatibility

Recommended PPE

Gloves

Width

48 mm

Height

845 mm

Maximum height

845 mm

Length

130 mm

Maximum length

250 mm

Net weight in operation

3 kg

Gross weight

6352,000 g

Unit in minimal packaging

1 PCE

Unit in standard packaging

1 PCE

ETIM Class 7

Crimp tool cable lugs, cable end sleeves, screen connection [EC000168]

Customs code

84678900

Supply configuration

B-TEPD head; 2244N-025V00-L900 R1/8 NPT flexible hose; insert OG13.2T-I; gauge CAL19.20; stem OG.M9; chamfering tool SK9038; case VAL HTEP
