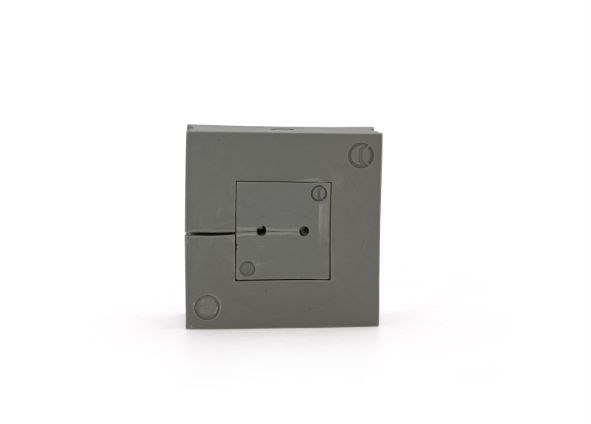

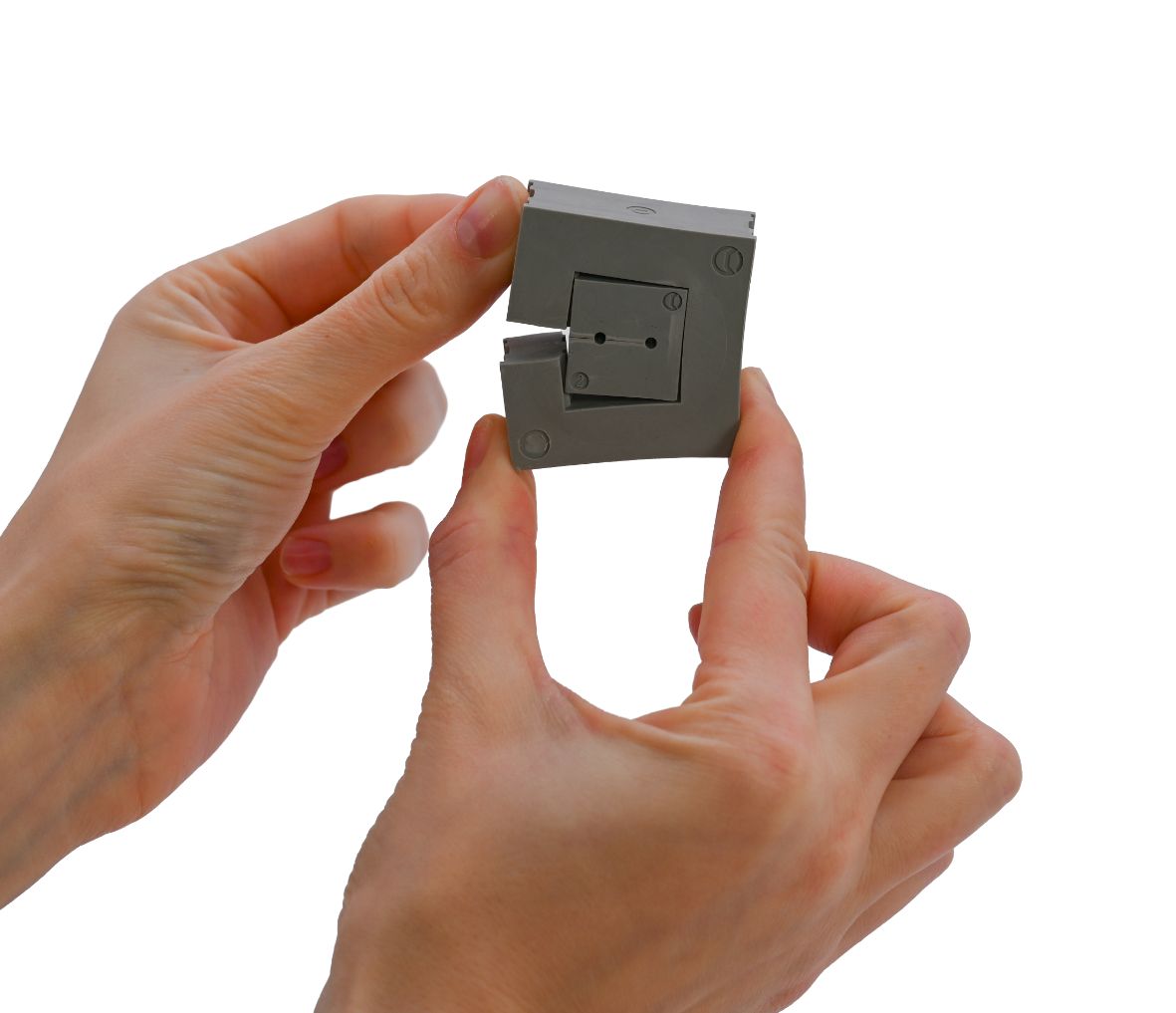

9.B-A CABLE GROMMETS ADAPTER

CABLE GROMMETS ADAPTER

Gallery

9.B-A

CABLE GROMMETS ADAPTER

Common features in table.

Features

Details by type in expandable section below.

Technical information
Material composition and treatments
Weight and dimensions
Logistic
Classification and data ordering
Certifications

Range of operating temperature (static)

-40 ÷ 100 °C

Material

TPE elastomer

Silicone-free

Yes

Halogen free

Yes

Height

41 mm

Number of holes

Length

41 mm

Clamping diameter range

1 ÷ 17 mm

Net weight in operation

23 g

Depth

17.5 mm

Unit in minimal packaging

10 PCE

Unit in standard packaging

30 PCE

Customs code

40169997

EN 45545-2 certification(R22)

HL2 [R22]

EN 45545-2 certification(R23)

HL3 [R23]

Self-extinguishing fire class according to UL 94

Compliance according to CEI EN 62444

Yes

Ingress Protection

IP66

9.B-A

	Technical information	Certifications
tipo	Color	EN ISO 4892-2
9.B-A	grey
9.B-AN	black	Yes
