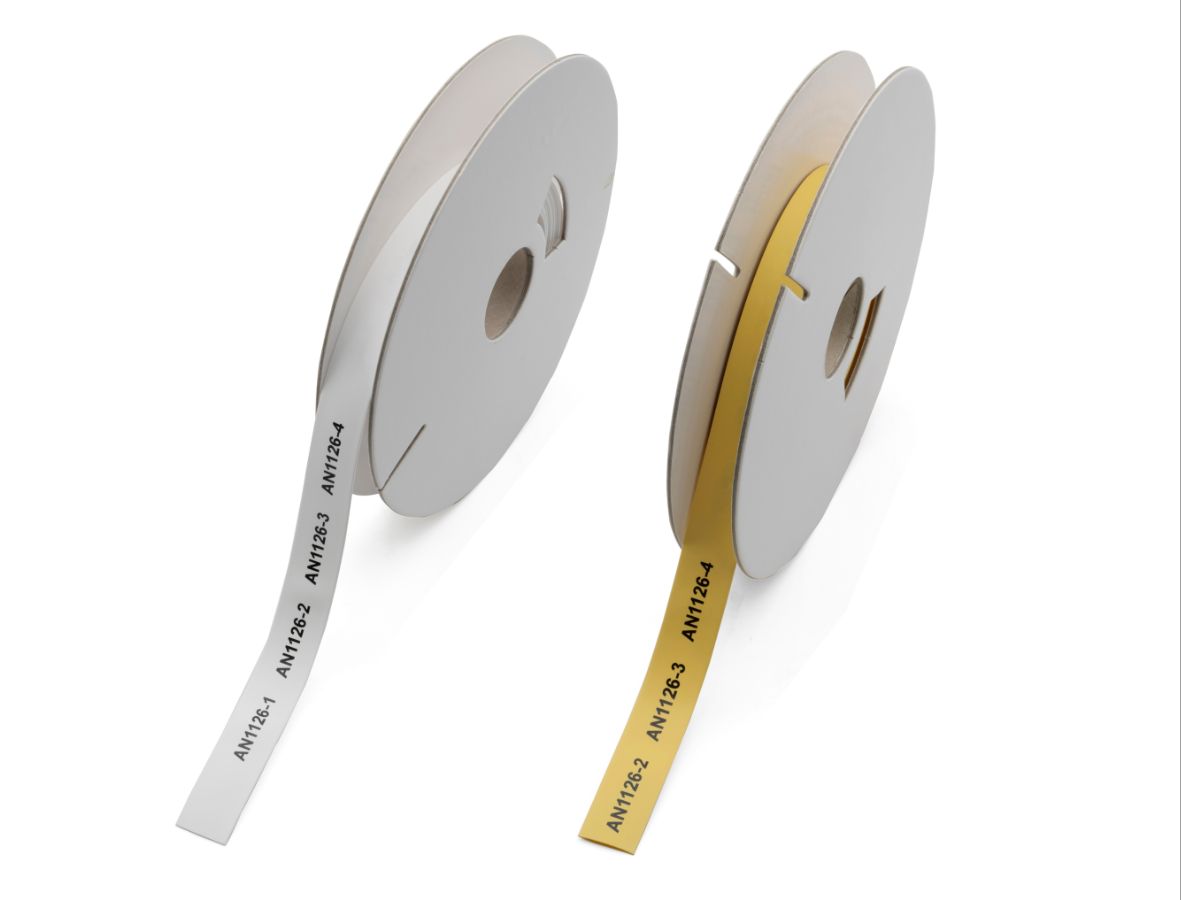

TERMO-ROLL H3N C2S

Heat shrink thermo-roll H3N cable marker, shrink ratio 3:1, high grade, continuous, printable on both sides

Gallery

TERMO-ROLL H3N C2S

Heat shrink thermo-roll H3N cable marker, shrink ratio 3:1, high grade, continuous, printable on both sides

Common features in table.

Features

Details by type in expandable section below.

Technical information
Material composition and treatments
Logistic
Classification and data ordering

Minimum operating temperature

-67 °F

Maximum operating temperature

221 °F

Minimum shrinkage temperature

194 °F

Shrinkage ratio

3:1

Material

Irradiated polyolefin

Halogen free

Yes

Unit in minimal packaging

1 PCE

Unit in standard packaging

1 PCE

Customs code

39173200

TERMO-ROLL H3N C2S

	Technical information		Weight and dimensions
tipo	Color	Range of cable cross section [awg/kcmil]	Ø [in]	Width [in]	Roll length [m]
H3N-24-WH3	white	- 20 AWG	0.04 - 0.09	0.09	20
H3N-32-WH3	white	- 18 AWG	0.05 - 0.11	0.13	20
H3N-48-WH3	white	20 AWG - 14 AWG	0.07 - 0.17	0.19	20
H3N-64-WH3	white	18 AWG - 10 AWG	0.1 - 0.23	0.25	20
H3N-95-WH3	white	12 AWG - 6 AWG	0.15 - 0.31	0.37	20
H3N-127-WH3	white	10 AWG - 2 AWG	0.19 - 0.43	0.5	20
H3N-190-WH3	white	6 AWG - 1 AWG	0.28 - 0.67	0.75	20
H3N-254-WH3	white	4 AWG - 4/0 AWG	0.35 - 0.91	1	20
H3N-381-WH3	white	4/0 AWG - 500 kcmil	0.91 - 1.42	1.5	20
H3N-48-YE3	yellow	20 AWG - 14 AWG	0.07 - 0.17	0.19	20
H3N-64-YE3	yellow	18 AWG - 10 AWG	0.1 - 0.23	0.25	20
H3N-95-YE3	yellow	12 AWG - 6 AWG	0.15 - 0.31	0.37	20
H3N-127-YE3	yellow	10 AWG - 2 AWG	0.19 - 0.43	0.5	20
H3N-190-YE3	yellow	6 AWG - 1 AWG	0.28 - 0.67	0.75	20
H3N-254-YE3	yellow	4 AWG - 4/0 AWG	0.35 - 0.91	1	20
H3N-381-YE3	yellow	4/0 AWG - 500 kcmil	0.91 - 1.42	1.5	20
H3N-24-WH3-50	white	- 20 AWG	0.04 - 0.09	0.09	50
H3N-32-WH3-100	white	- 18 AWG	0.05 - 0.11	0.13	100
H3N-48-WH3-100	white	20 AWG - 14 AWG	0.07 - 0.17	0.19	100
H3N-64-WH3-100	white	18 AWG - 10 AWG	0.1 - 0.23	0.25	100
H3N-95-WH3-100	white	12 AWG - 6 AWG	0.15 - 0.31	0.37	100
H3N-127-WH3-100	white	10 AWG - 2 AWG	0.19 - 0.43	0.5	100
H3N-190-WH3-100	white	6 AWG - 1 AWG	0.28 - 0.67	0.75	100
H3N-381-WH3-60	white	4/0 AWG - 500 kcmil	0.91 - 1.42	1.5	60
