Categories > Tools > Crimping connectors > Battery-powered hydraulic tools > B540ND-BVA6

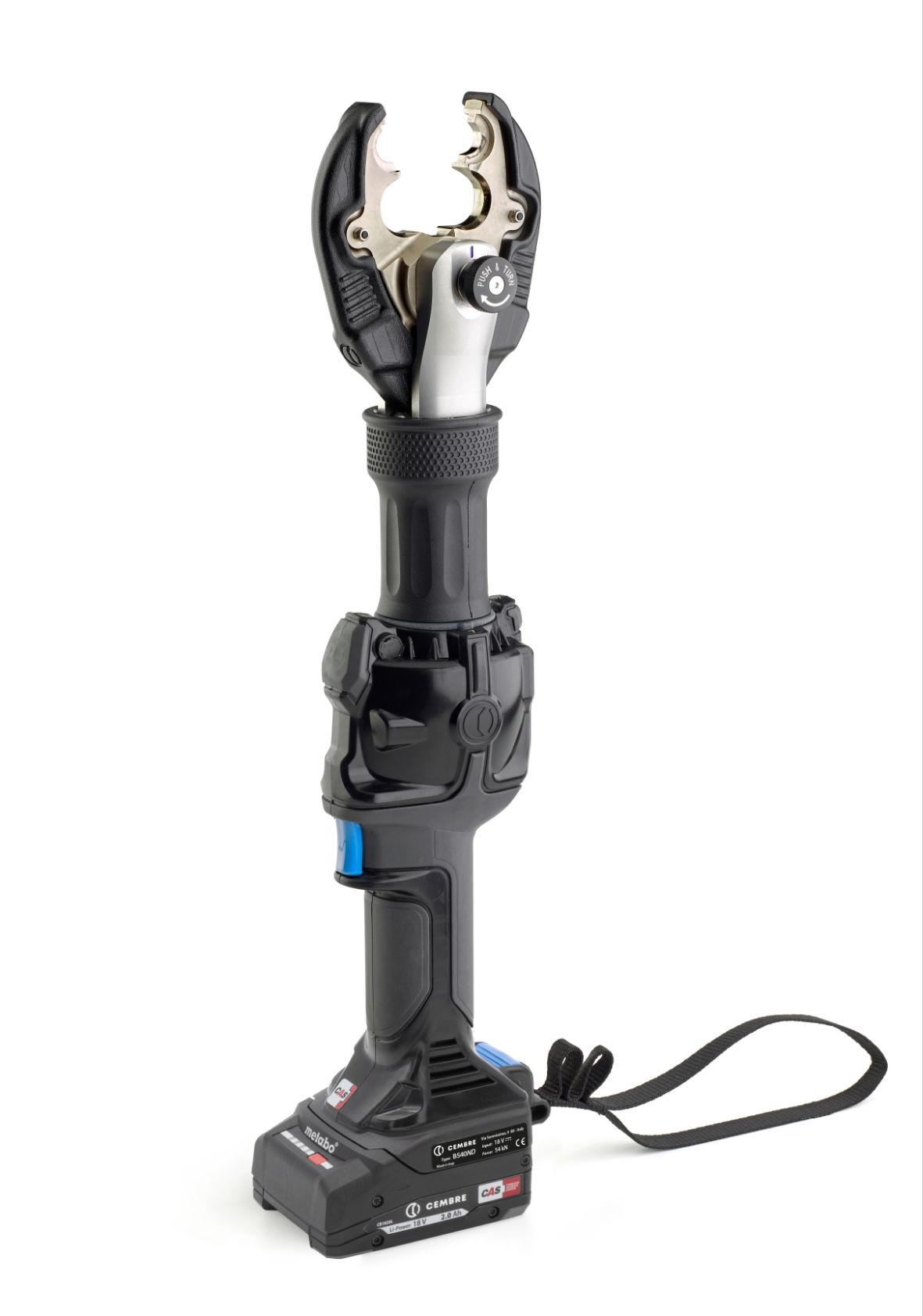

B540ND-BVA6

18V Cordless Hydraulic Crimping Tool

Gallery

B540ND-BVA6

18V Cordless Hydraulic Crimping Tool

Included into package

ASC55-USA/CA: --
CB1820L: LI-ION BATTERY

Documentation

Manual (pdf)

Features

Technical information
Weight and dimensions
Compatibility

Nominal crimping force

54 kN

Range of operating temperature

-15 ÷ 50 °C

Supply voltage

18 V

Remaining charge indicator

Yes

Software

Yes

Pressure control system

max pressure valve

Recommended PPE

Gloves

Equivalent continuous sound pressure

67.7 dBA

Maximum instantaneous sound pressure

89.2 dBC

Acoustic power

74.2 dBA

Standard cycle vibrations

0.724 m/s²

Width

87 mm

Height

403 mm

Maximum height

403 mm

Length

104 mm

Maximum length

104 mm

Net weight in operation

2.9 kg

Supply configuration

CB1820L battery; ASC55 USA/CAN battery charger; CDD6N (D3+BG) crimping jaws; USB cable; CVB-033 canvas bag; shoulder strap

B540ND6

B540NDA6

B540NDK6

B540NDA6-6

B540NDK6-6
